Description
- Symmetrical oval shape allows optimal loading of devices with a wide cross-section, such as pulleys, rope clamps and mobile fall arresters
- Aluminum carabiner whose light weight reduces the weight of equipment the worker at height needs to carry

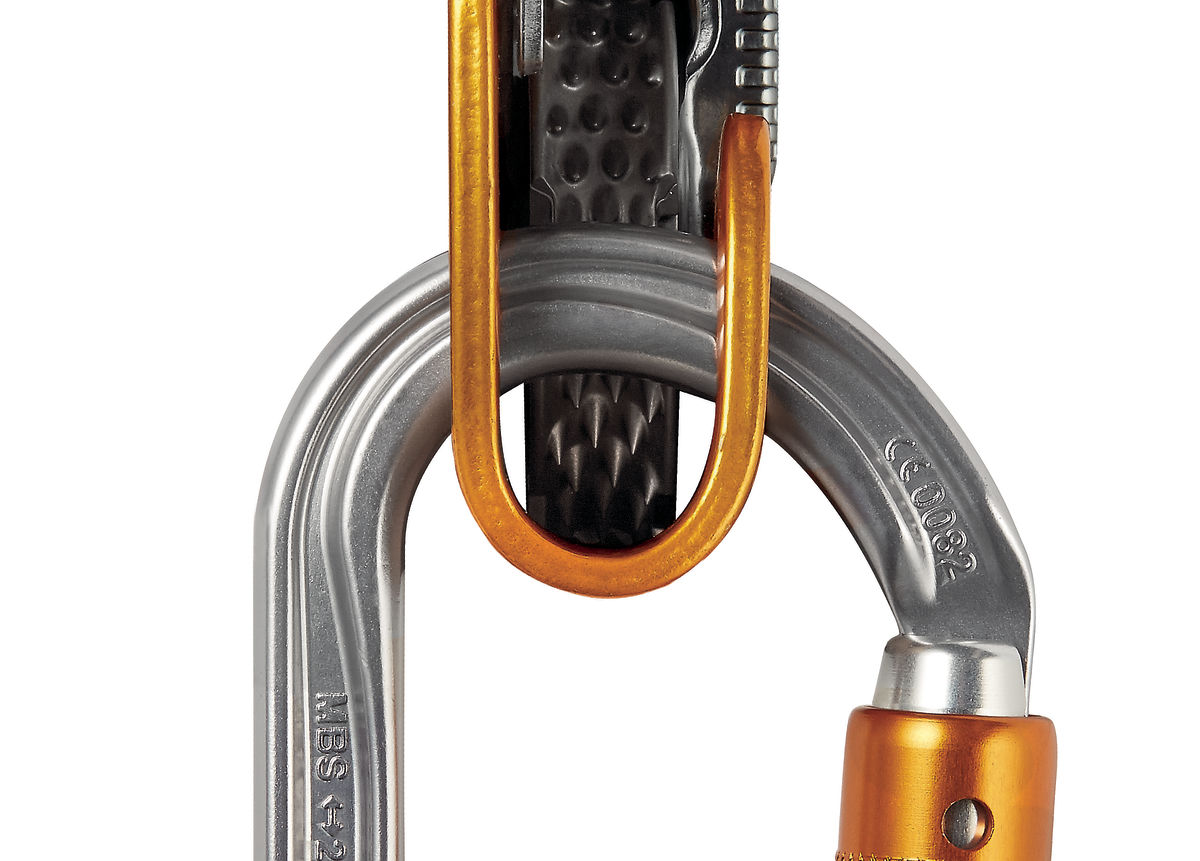

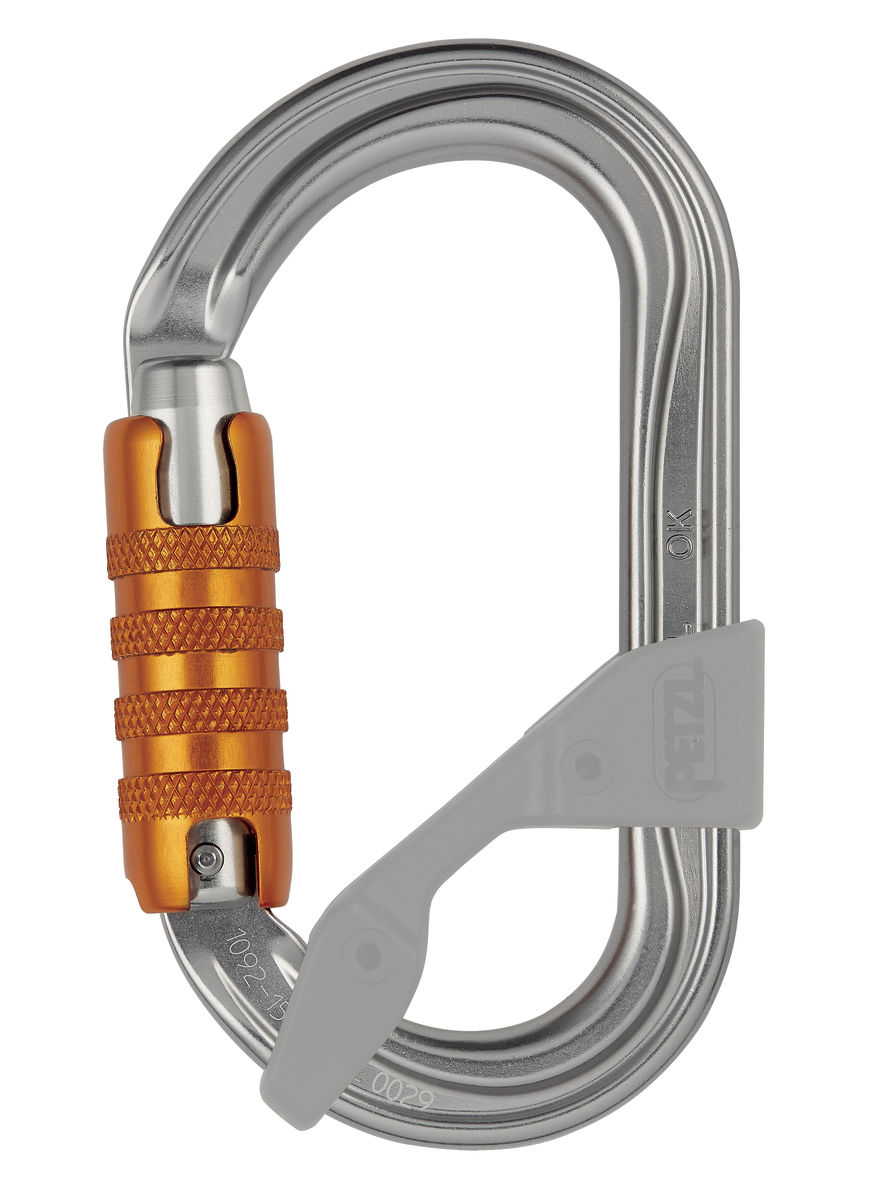

- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
- Easier handling:

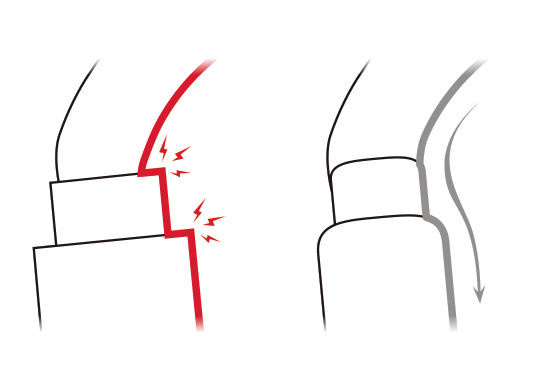

– fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

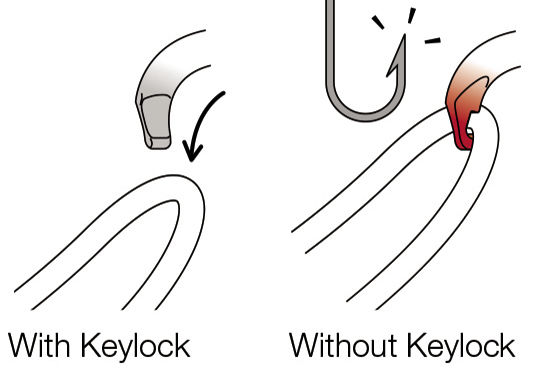

– Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
– ensures an optimal strength/weight ratio
– protects markings from abrasion - Available in three different locking systems:

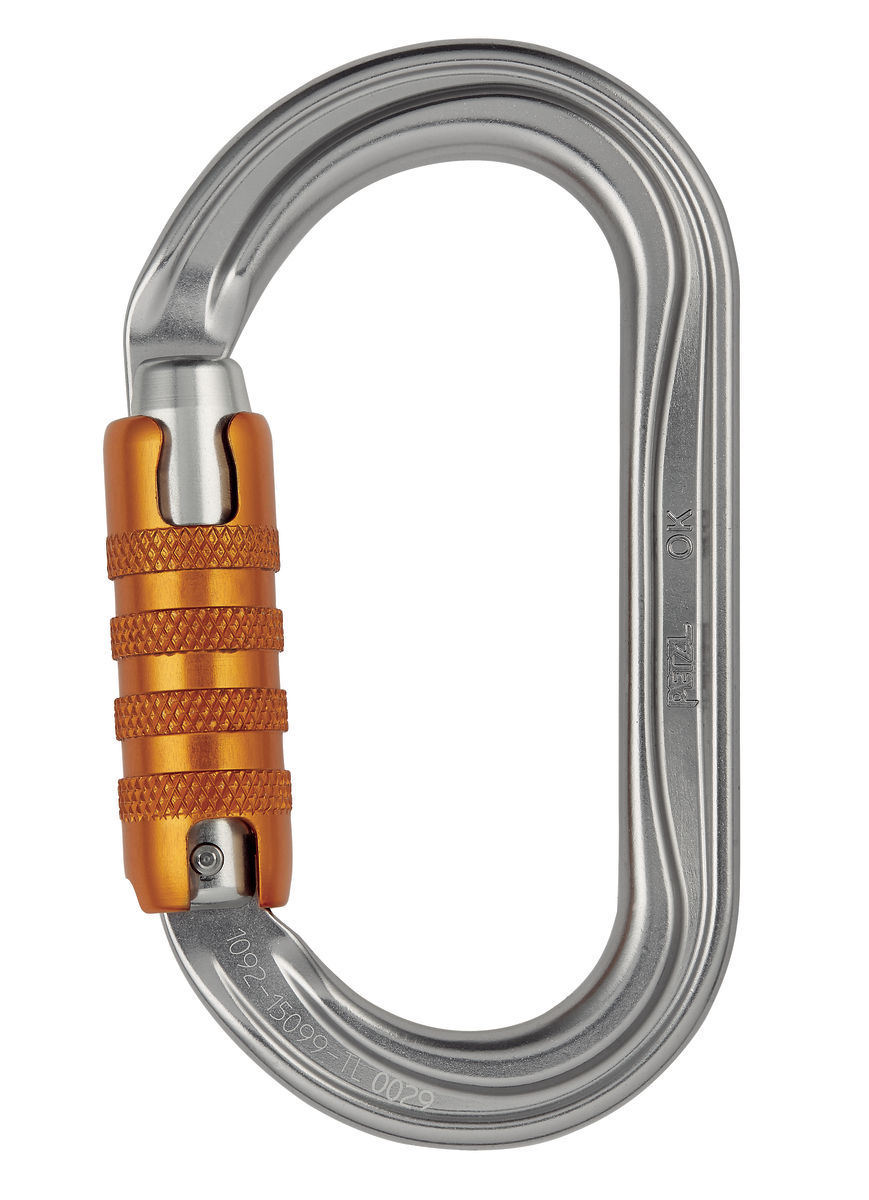

– TRIACT-LOCK: automatic locking with triple-action gate opening

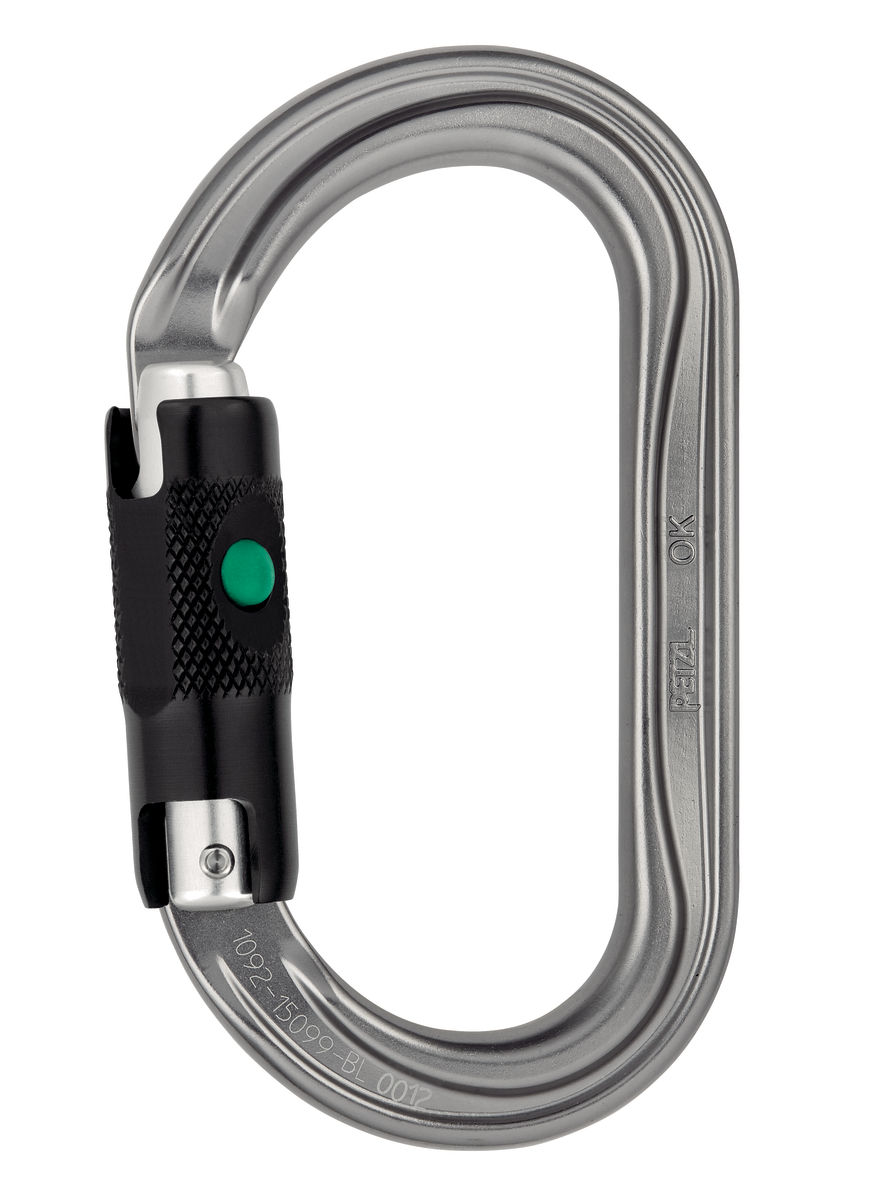

– BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator

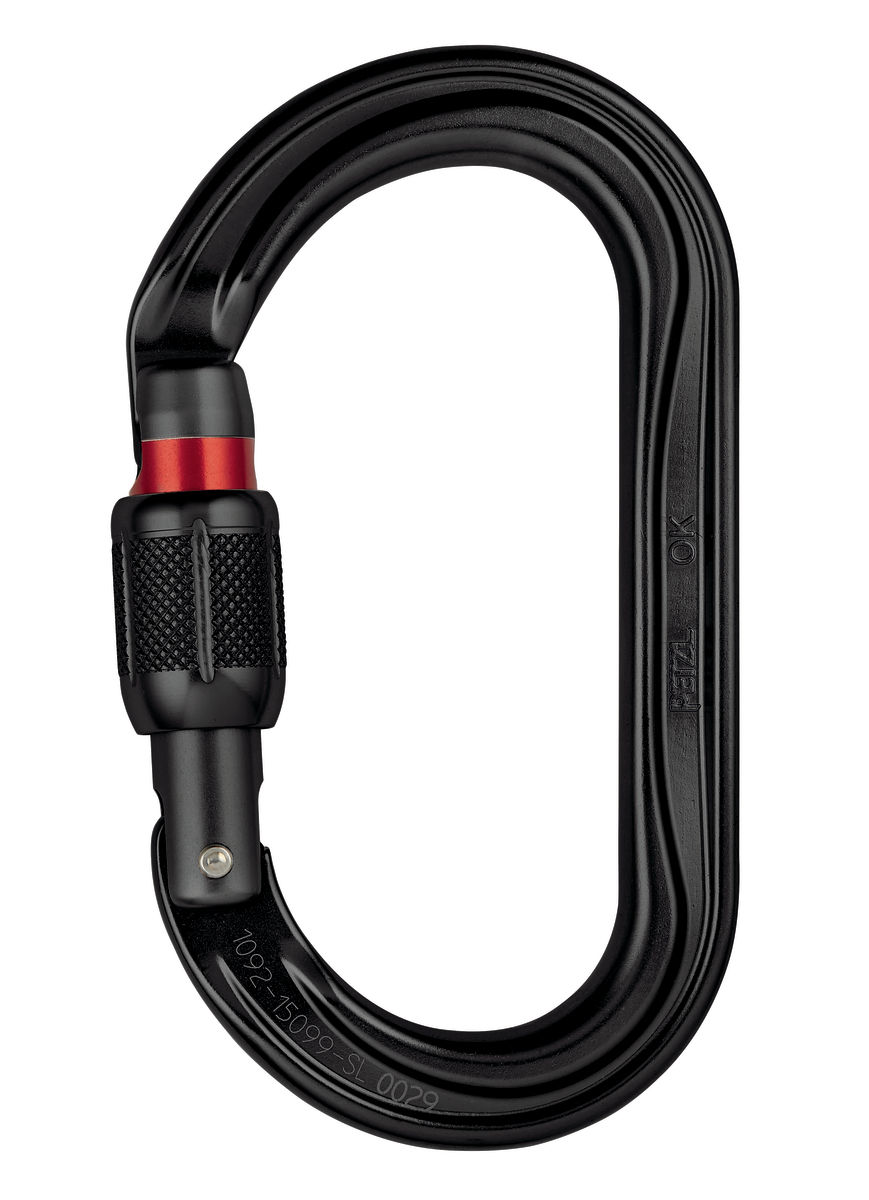

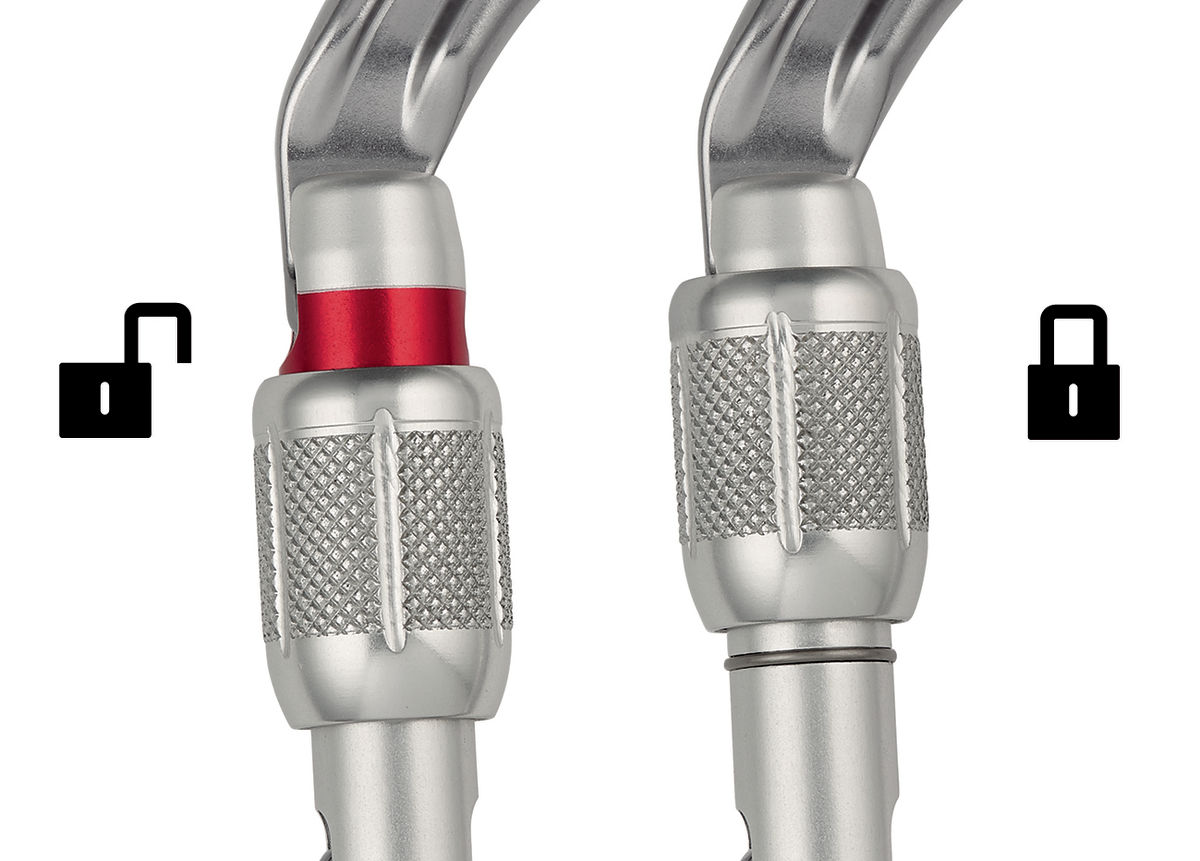

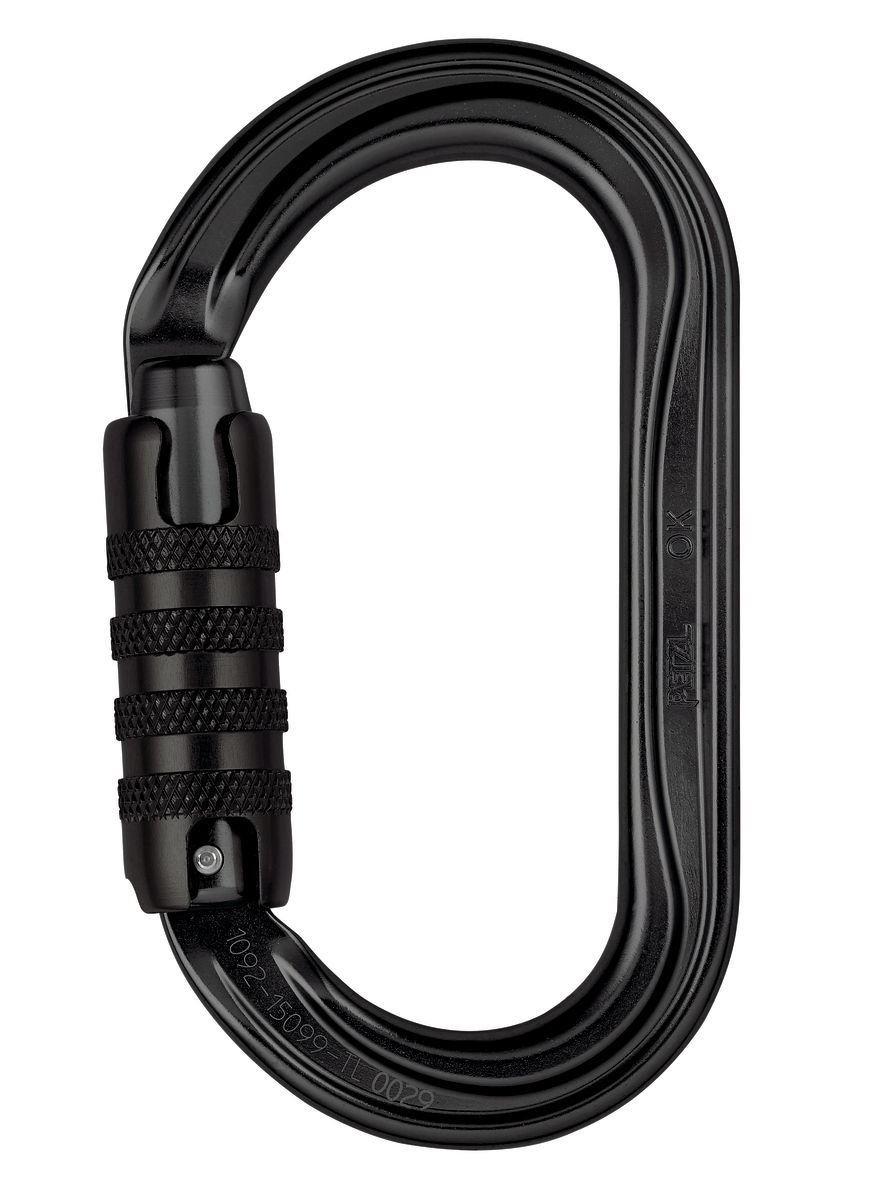

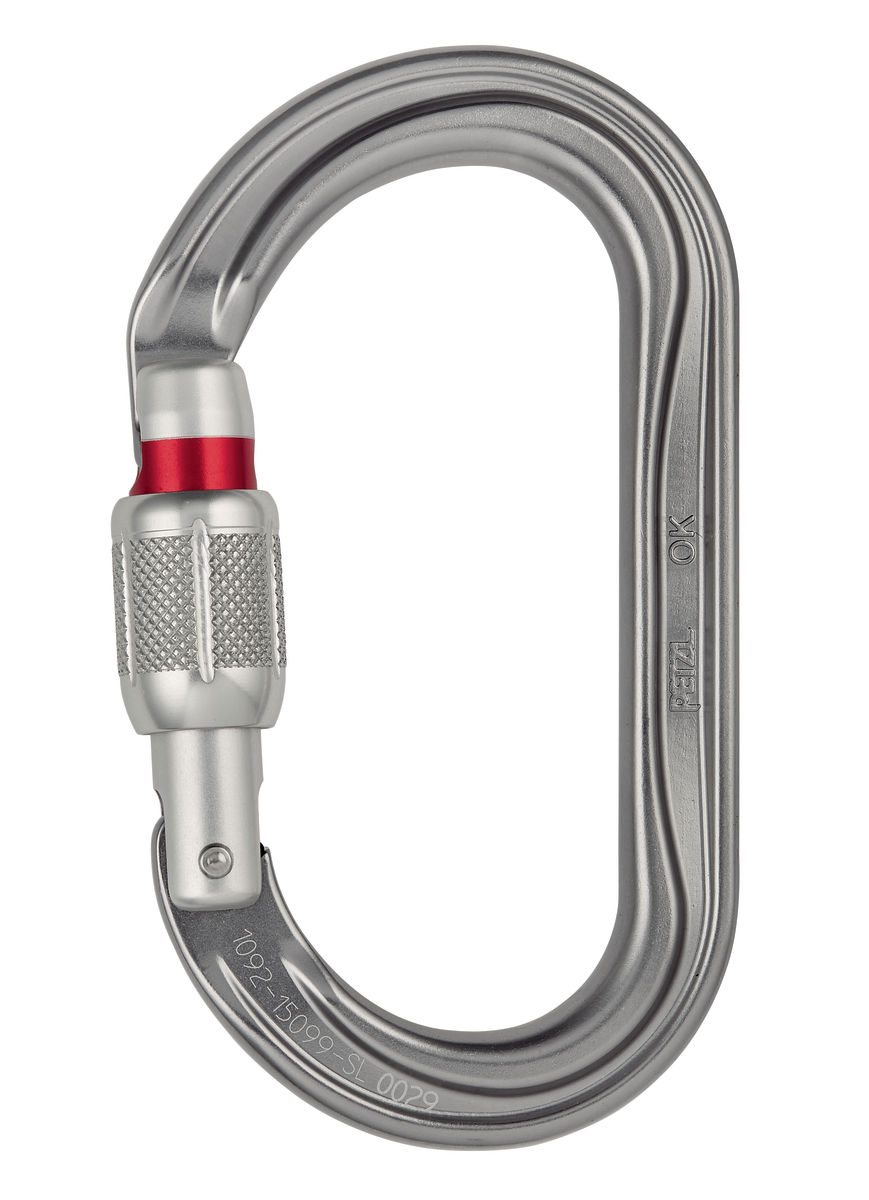

– SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked - Also available in black (TRIACT-LOCK and SCREW-LOCK)
Specifications
- Material(s): aluminum
- Certification(s): CE EN 362, EAC, UKCA
References
| References | M33A TL | M33A BL | M33A SL | M33A TLN | M33A SLN |
|---|---|---|---|---|---|
| Weight | 75 g | 75 g | 70 g | 75 g | 70 g |
| Locking system | TRIACT-LOCK | BALL-LOCK | SCREW-LOCK | TRIACT-LOCK | SCREW-LOCK |
| Color(s) | Gray | Gray | Gray | Black | Black |
| Major axis strength | 25 kN | 25 kN | 25 kN | 25 kN | 25 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN |
| Gate opening | 22 mm | 23 mm | 22 mm | 22 mm | 22 mm |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 |
