Description
- An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.
- Operations and efficiency are optimized:

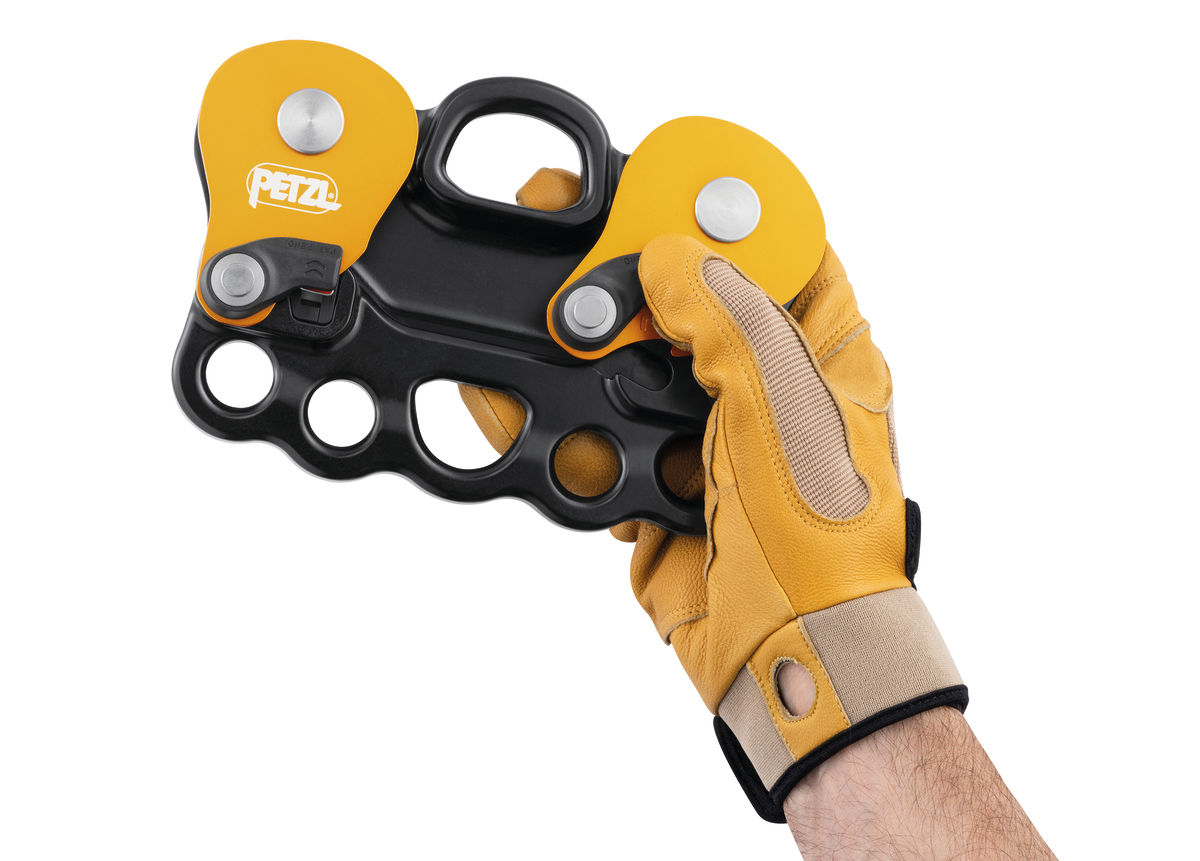

– Triple-action opening of moving side plates, possible even with gloves

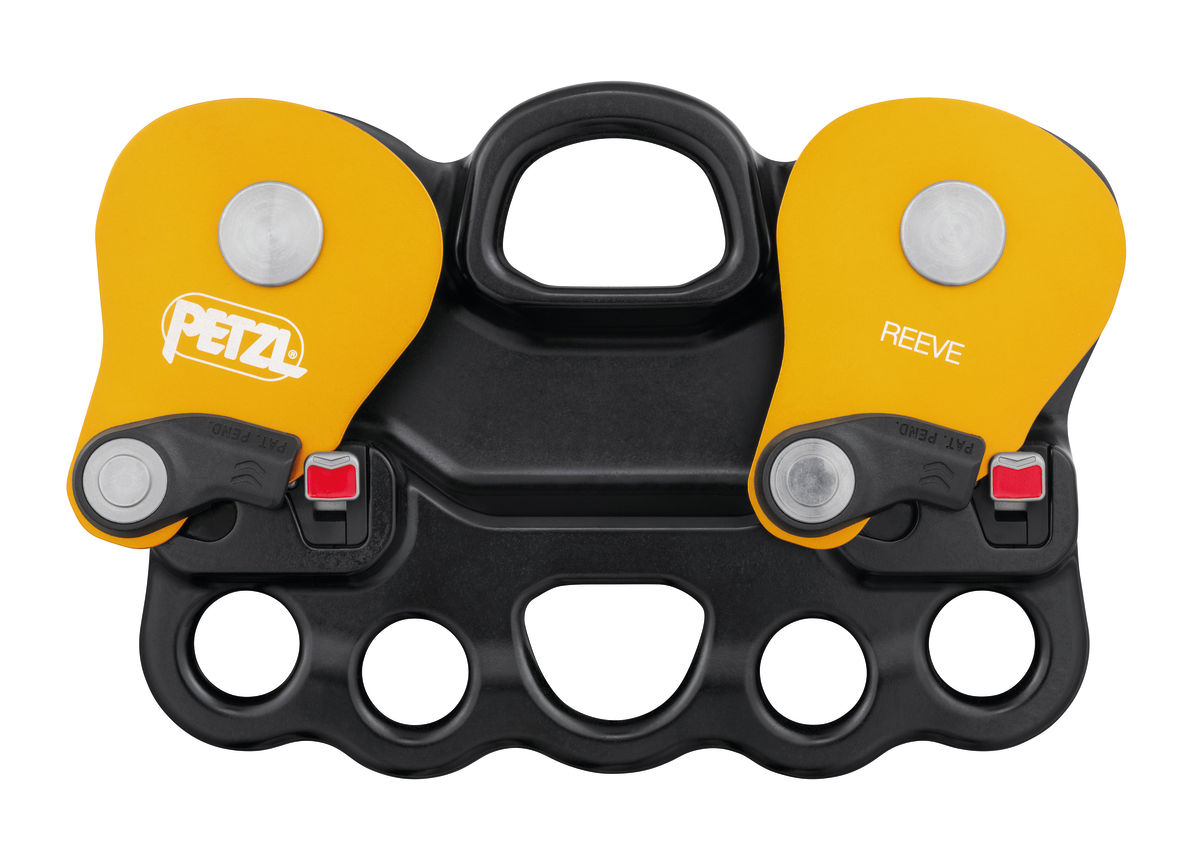

– Red indicators provide a visual warning when the side plates are not correctly locked - Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
– Possible to rig the system before installing it on the main line - Multiple configurations and connections are possible:

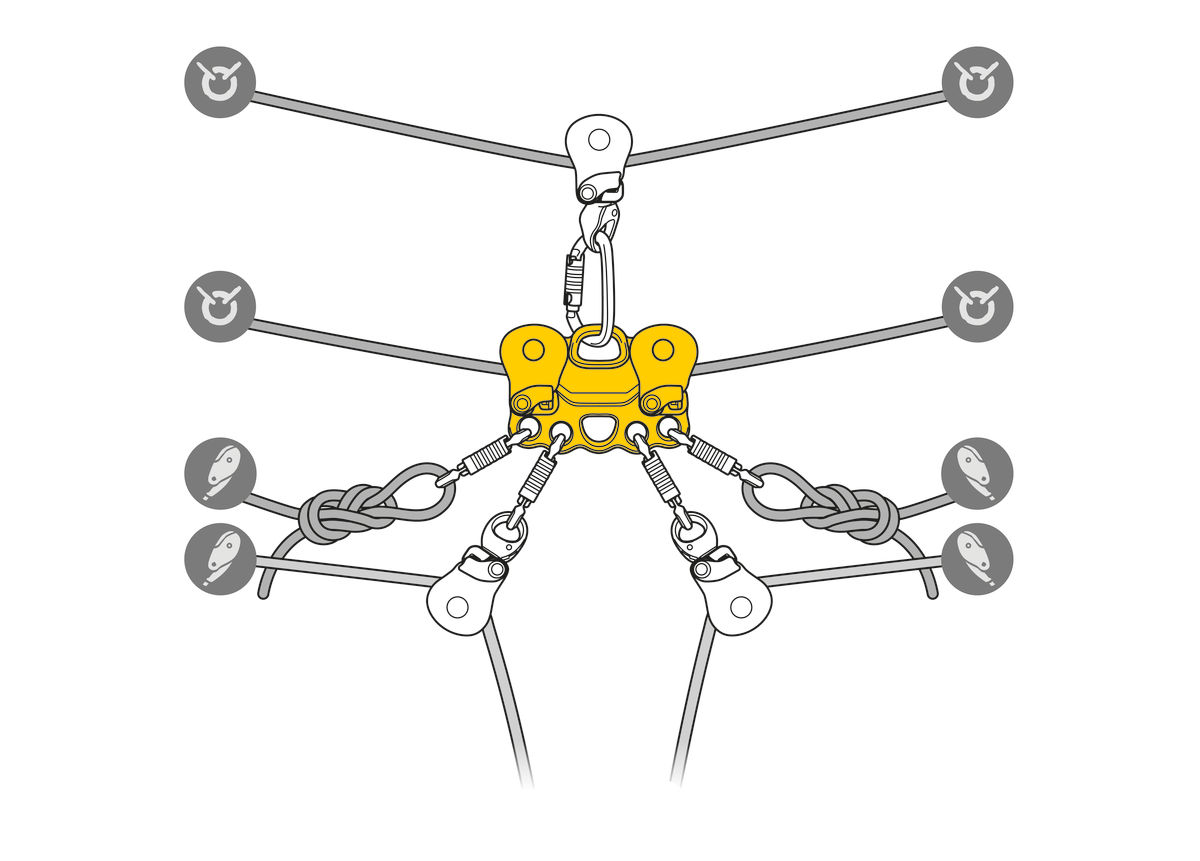

– System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance

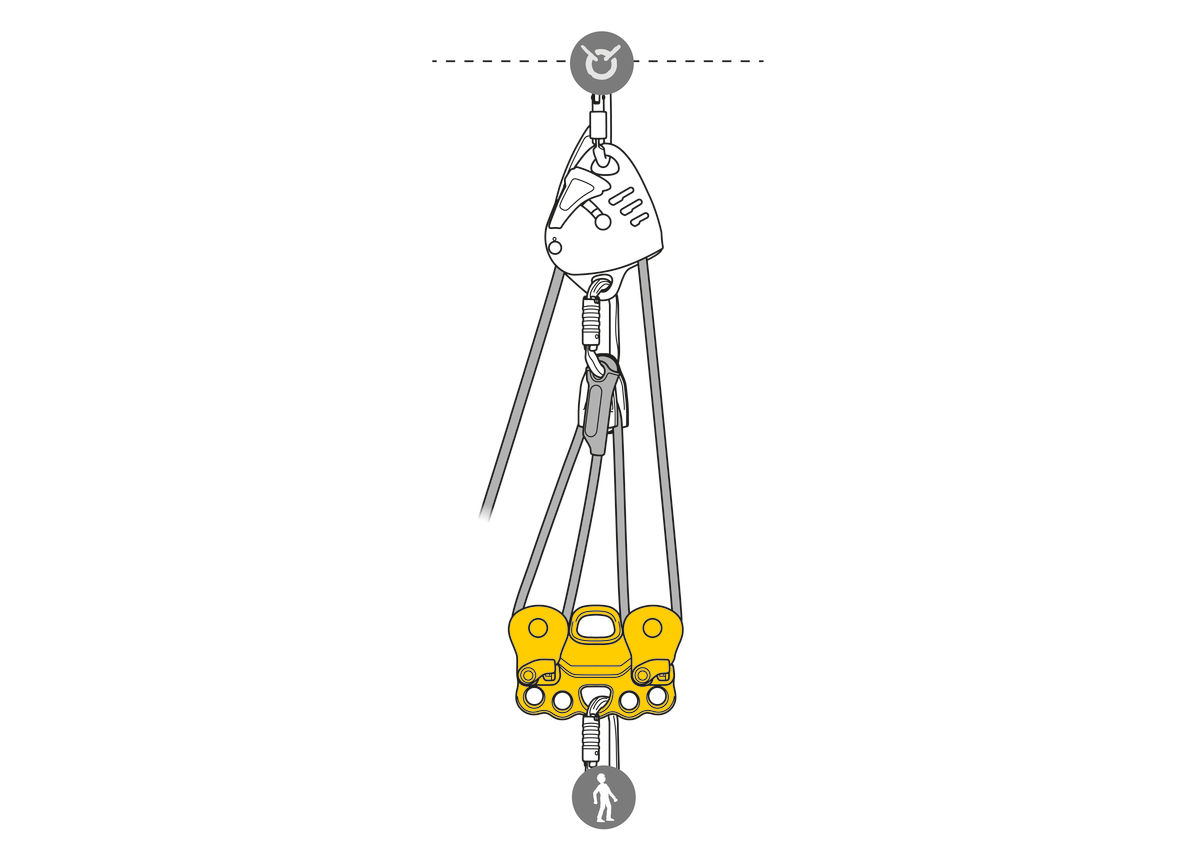

– Pulley can be used in a haul system

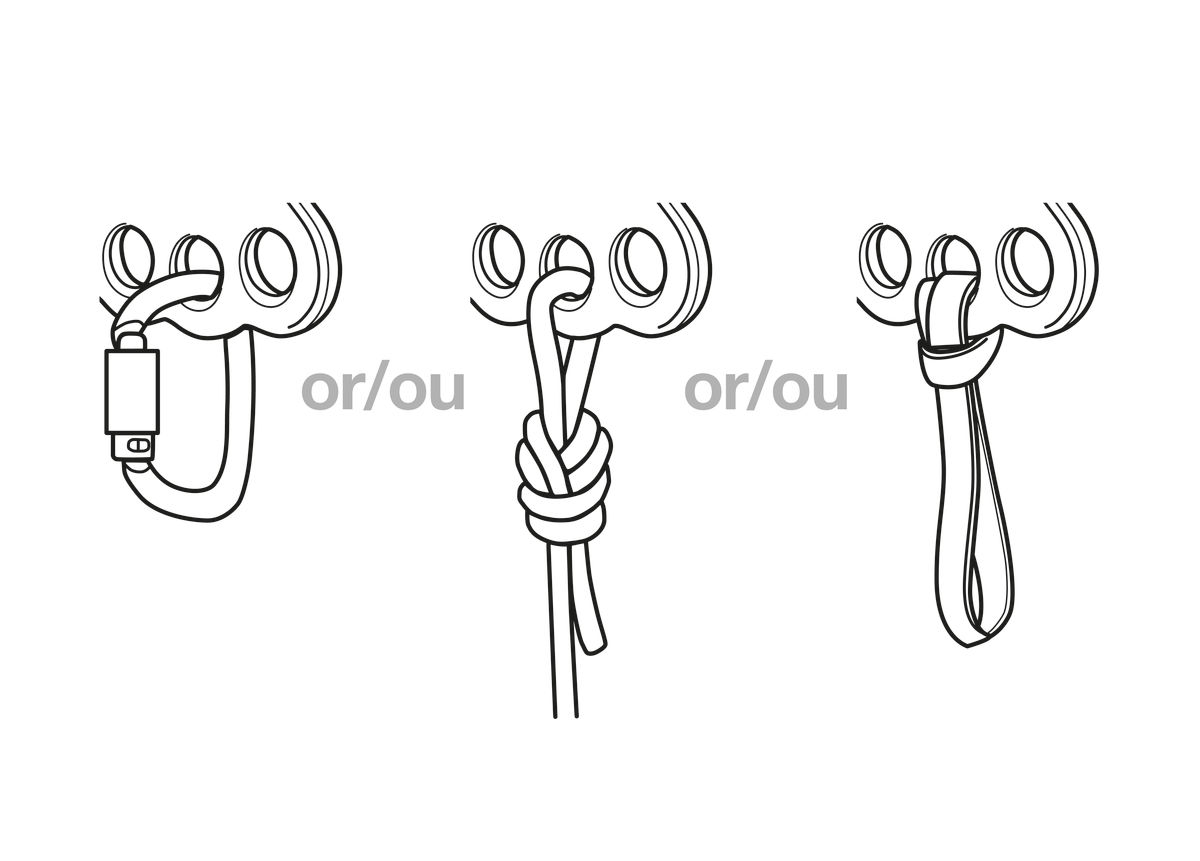

– Hole design allows ropes or slings to be threaded for direct connection
– 19 mm holes allow locking sleeves of most carabiners to pass through
– The odd number of attachment holes enables the system to be centered and balanced
– Up to three people can be connected at the same time
Specifications
- Weight: 650 g
- Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: Sealed Ball Bearings
- Sheave diameter: 38 mm
- Working Load Limit: 4 x 2 kN = 8 kN
- Breaking strength: 36 kN
- Efficiency: 95 %
References
| References | P005AA00 |
|---|---|
| Color(s) | Yellow |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
