MGO OPEN

Auto-locking directional connector with large gate opening, and a gated connection point.

MGO OPEN is an auto-locking directional connector with a large gate opening for connection to metal structures or to large-diameter cables and bars. It has a gated connection point for attachment to different types of lanyards. If the lanyard is damaged, the connector can thus be reused. MGO OPEN is available in two versions.

Add to Quote

Description

  • Designed for connection to metal structures or to large-diameter cables and bars

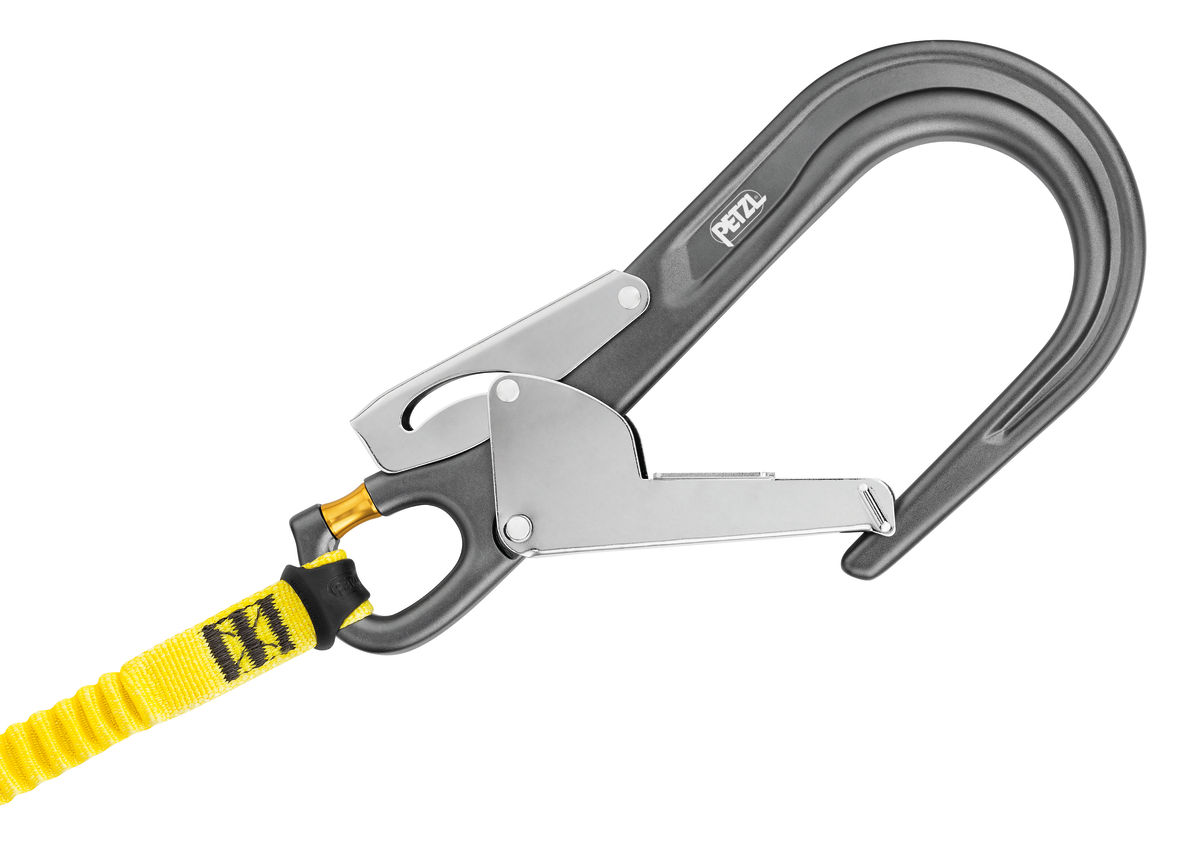

  • Gated connection point allows the MGO OPEN to be directly installed at the end of ABSORBICA-I, ABSORBICA-Y, JANE, PROGRESS or PROGRESS ADJUST-type double lanyards and GRILLON-type work positioning lanyards. If the lanyard is damaged, the connector can thus be reused
  • Special connection point helps keep the carabiner loaded on the major axis
  • Ergonomic unlocking handle
  • Available in two versions:

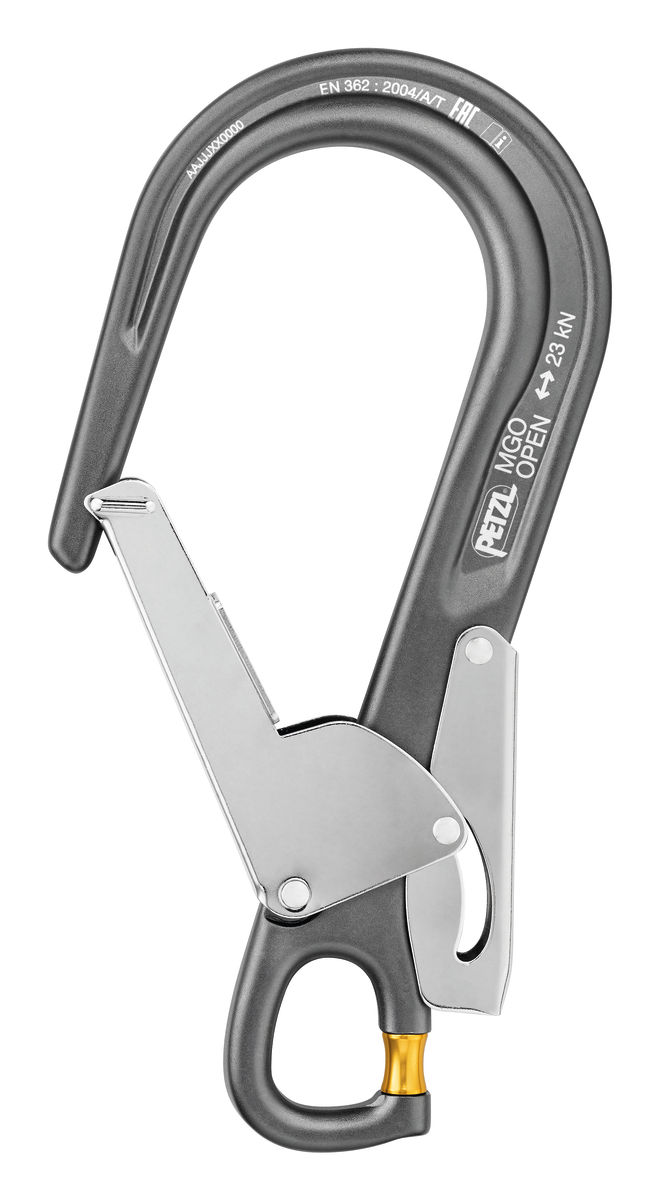

    – MGO OPEN 60 with wide opening (60 mm opening)

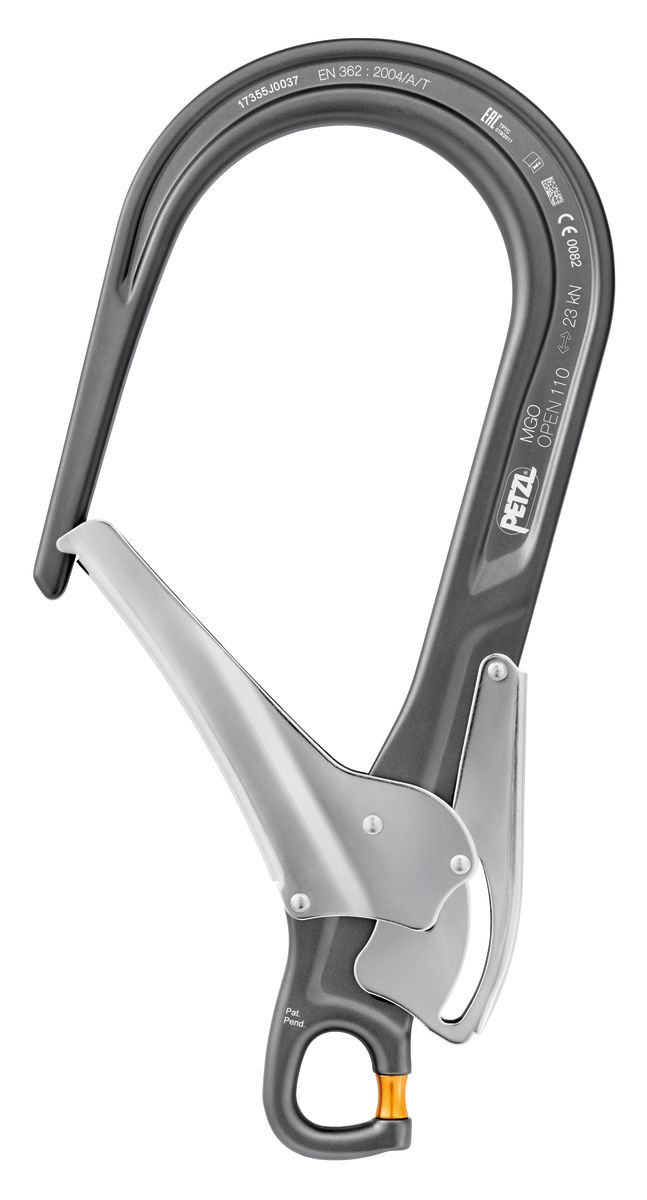

    – MGO OPEN 110 with very wide opening (110 mm opening)

Specifications

  • Material(s): aluminum

References

ReferencesMGOO 60M080AA00
VersionMGO OPEN 60MGO OPEN 110
Weight490 g930 g
Major axis strength23 kN23 kN
Open gate strength23 kN23 kN
Gate opening63 mm110 mm
Certification(s)CE EN 362, UKCA, EACCE EN 362, UKCA, EAC
Guarantee3 years3 years
Inner Pack Count11
