Description
- High-strength steel carabiner for use in harsh environments, particularly suitable for setting up anchors or for connecting to metal structures
- Oval symmetrical shape allows optimal positioning of the carabiner

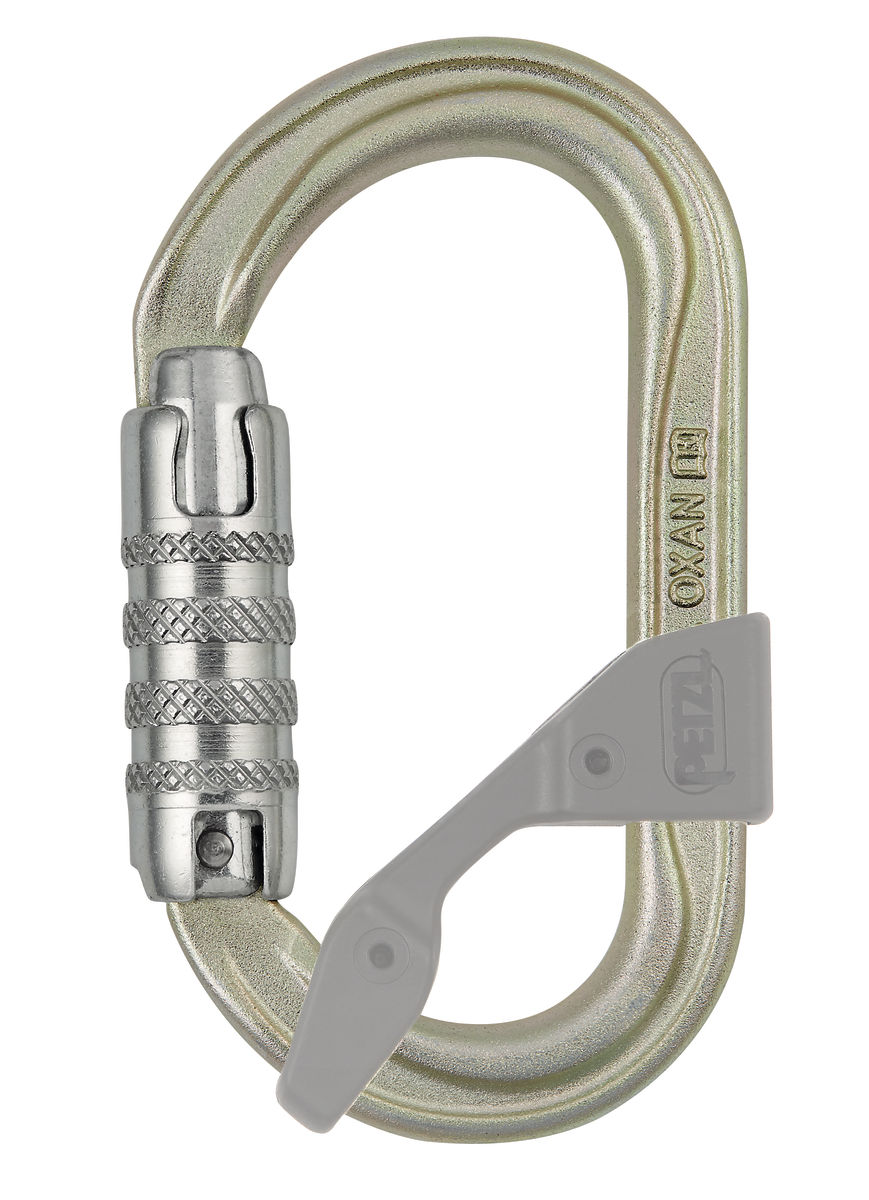

- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
- Easier handling:
– fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
– Keylock system to avoid any involuntary snagging of the carabiner - H cross-section:
– ensures an optimal strength/weight ratio
– protects markings from abrasion - Two locking systems available:

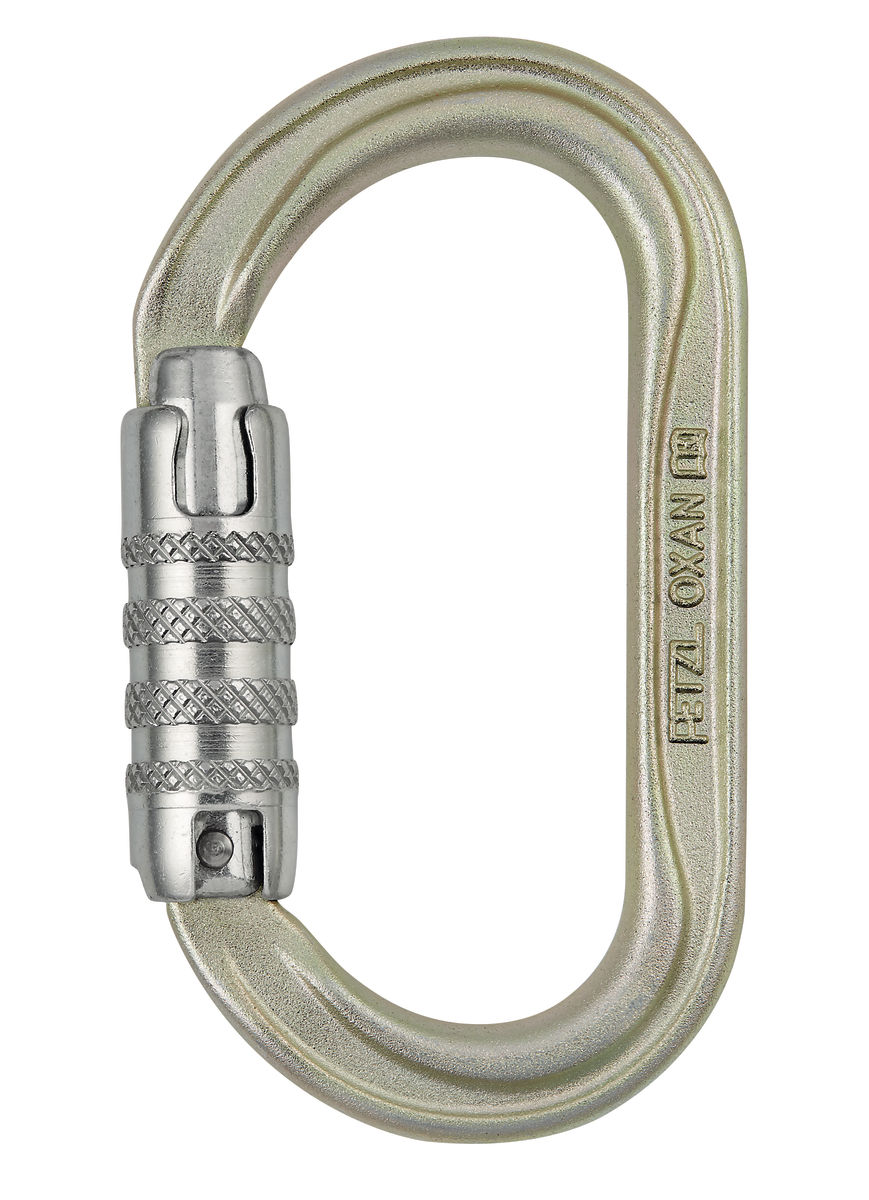

– TRIACT-LOCK: automatic locking with triple-action gate opening

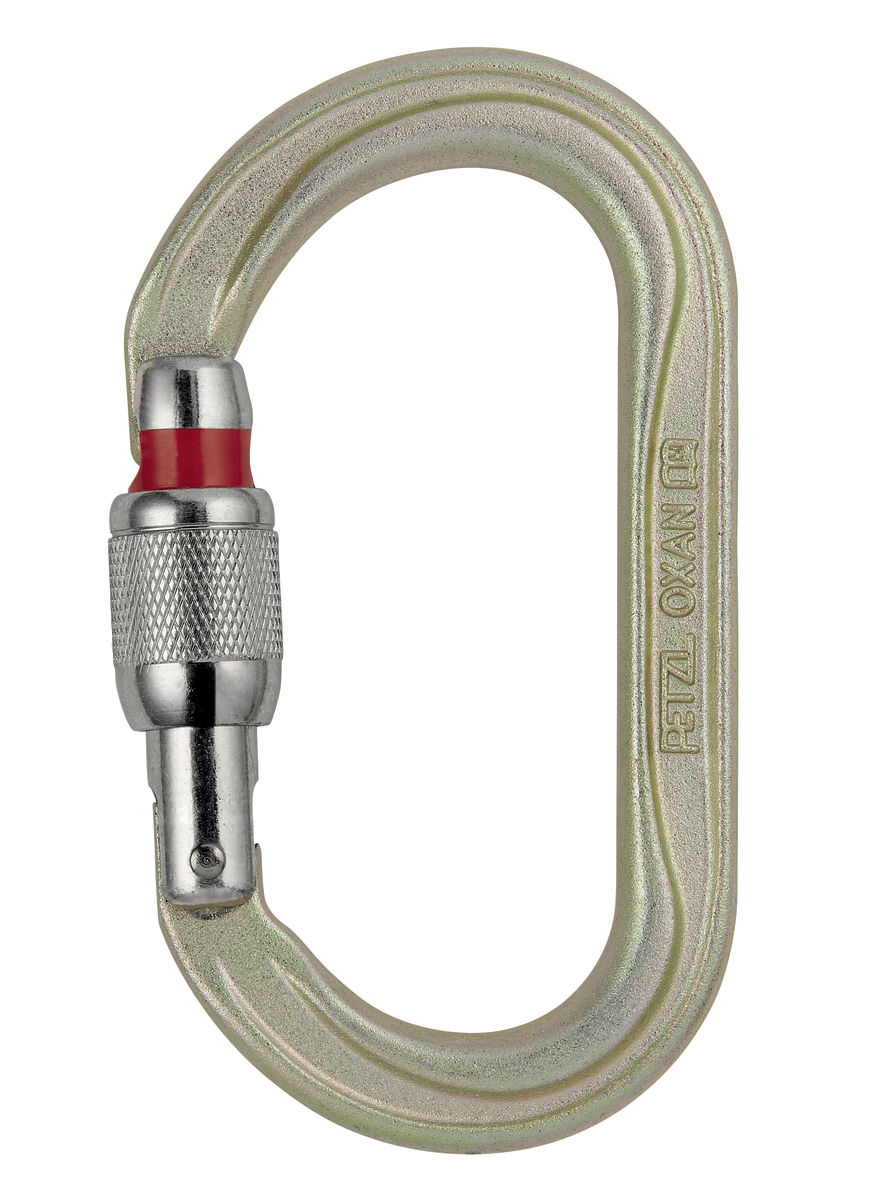

– SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked - Available in European or international versions

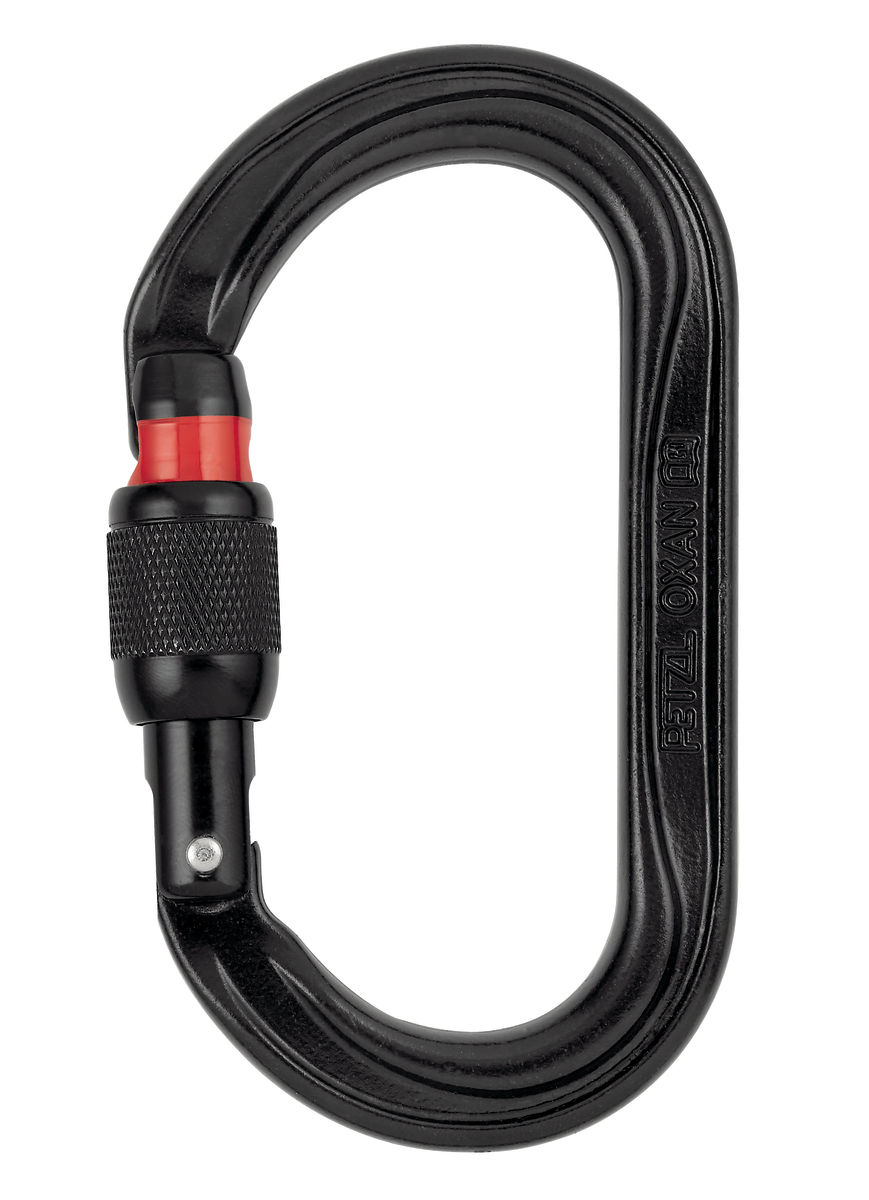

- Also available in black
Specifications
- Material(s): steel
References
| References | M72A TL | M72A SL | M72A TLA | M72A TLN | M72A SLN |
|---|---|---|---|---|---|
| Locking system | TRIACT-LOCK | SCREW-LOCK | TRIACT-LOCK | TRIACT-LOCK | SCREW-LOCK |
| Certification(s) | CE EN 362, NFPA 2500 Technical Use, EAC, UKCA, GB/T 23469-2009 XF 494-2004 | CE EN 362, NFPA 2500 Technical Use, EAC, UKCA, GB/T 23469-2009 XF 494-2004 | CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC, UKCA | CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC, UKCA | CE EN 362, NFPA 2500 Technical Use, EAC, UKCA, GB/T 23469-2009 XF 494-2004 |
| Color(s) | gold | gold | gold | black | black |
| Major axis strength | 38 kN | 38 kN | 38 kN | 38 kN | 38 kN |
| Minor axis strength | 16 kN | 16 kN | 16 kN | 16 kN | 16 kN |
| Open gate strength | 15 kN | 15 kN | 15 kN | 15 kN | 15 kN |
| Gate opening | 22 mm | 22 mm | 20 mm | 20 mm | 22 mm |
| Weight | 195 g | 185 g | 230 g | 230 g | 185 g |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 |
