Description
- Drop-resistant and easy to operate:

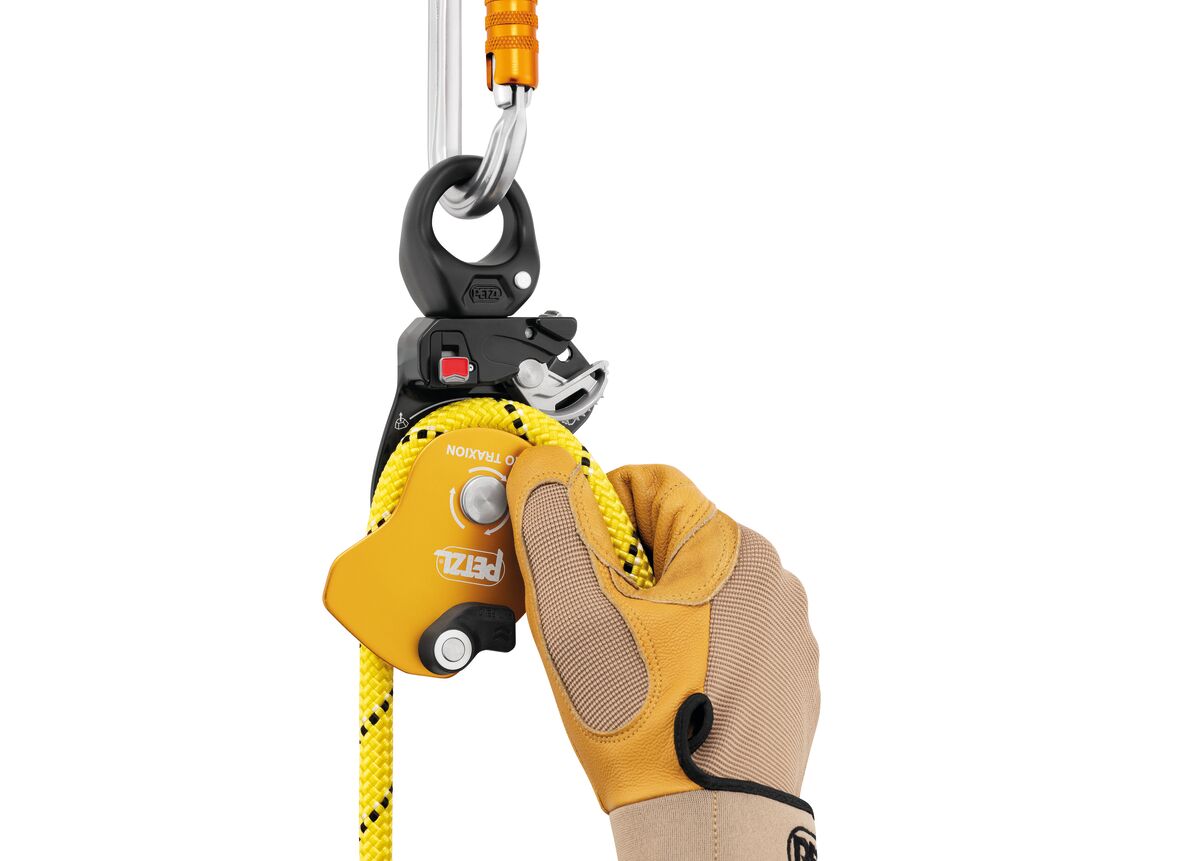

– Triple-action opening of the moving side plate is quick and easy, even with gloves
– Rope can be installed when the pulley is connected to the anchor
– Red indicator provides a visual warning when the moving side plate is unlocked
– Special side plate design protects the rope path - Designed for hauling heavy loads:
– Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
– Swivel allows pulley to be oriented under load - Versatile:

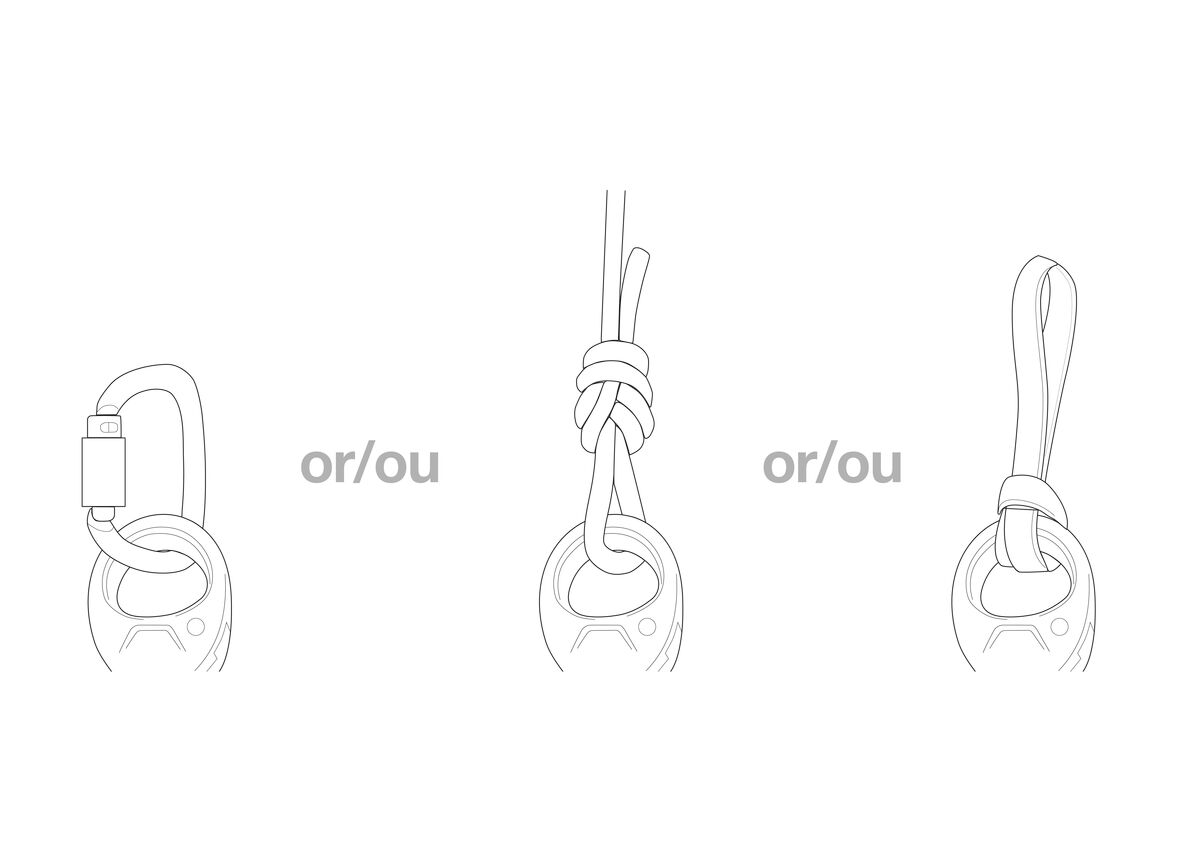

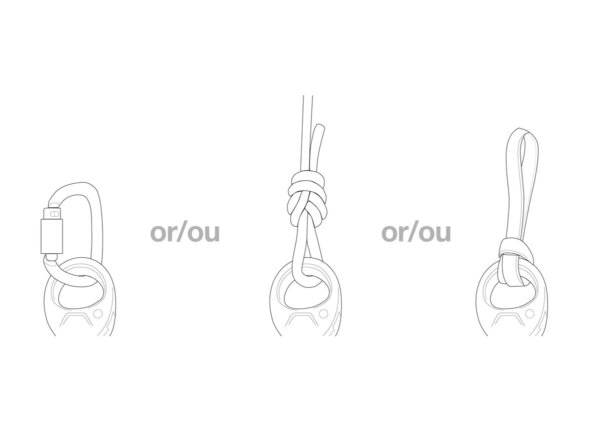

– Swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging

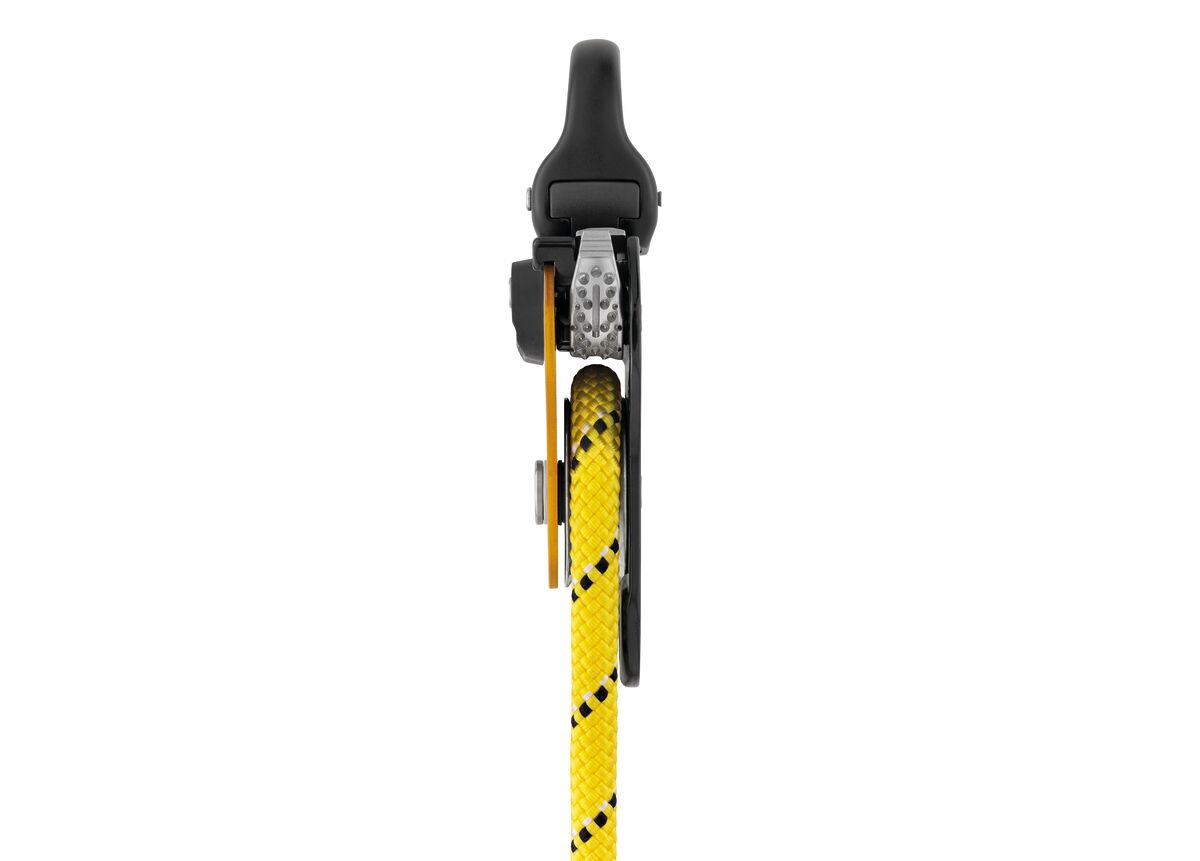

– Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
– May be used as a simple pulley by locking the cam in the raised position
– Auxiliary attachment point can be used to set up a haul system
– Hole in the cam for installation of a remote control cord
Specifications
- Weight: 295 g

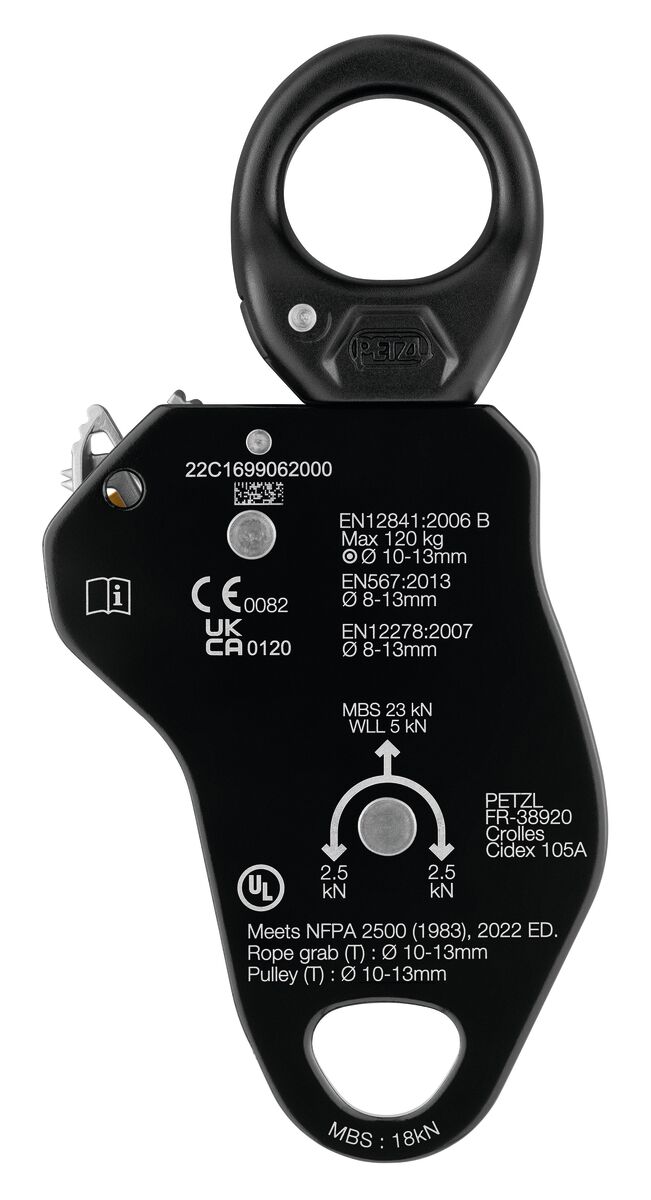

- Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 8 mm
- Max. rope diameter: 13 mm
- Sheave type: Sealed ball bearings
- Sheave diameter: 38 mm
- Breaking strength – rope clamp: 4 kN
- Breaking strength – pulley: 11.5 kN x 2 = 23 kN
- Efficiency: 95 %
References
| References | P055AA00 |
|---|---|
| Guarantee | 3 years |
| Inner Pack Count | 1 |
