Description
- Designed for maximum simplicity when setting up haul systems or tyroleans for work at height or rescue:

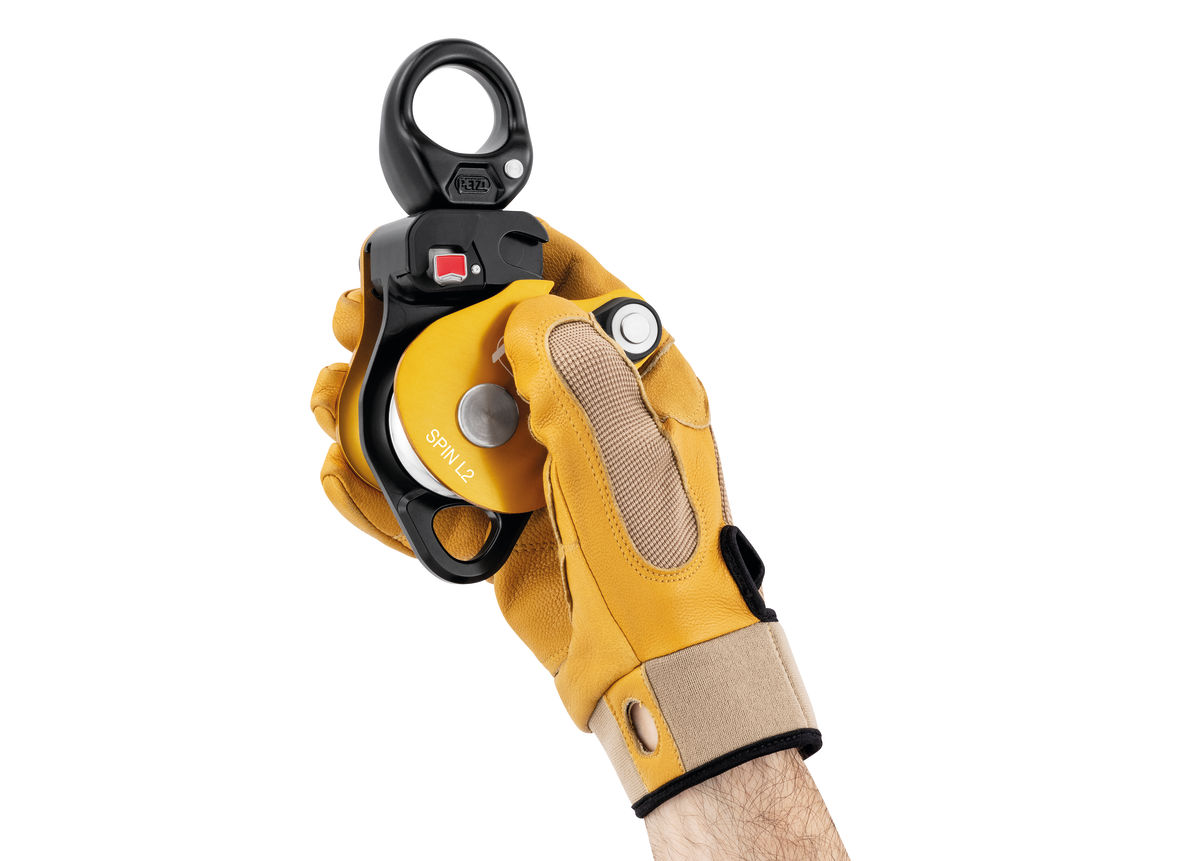

– triple-action opening of the moving side plate is quick and easy, even with gloves

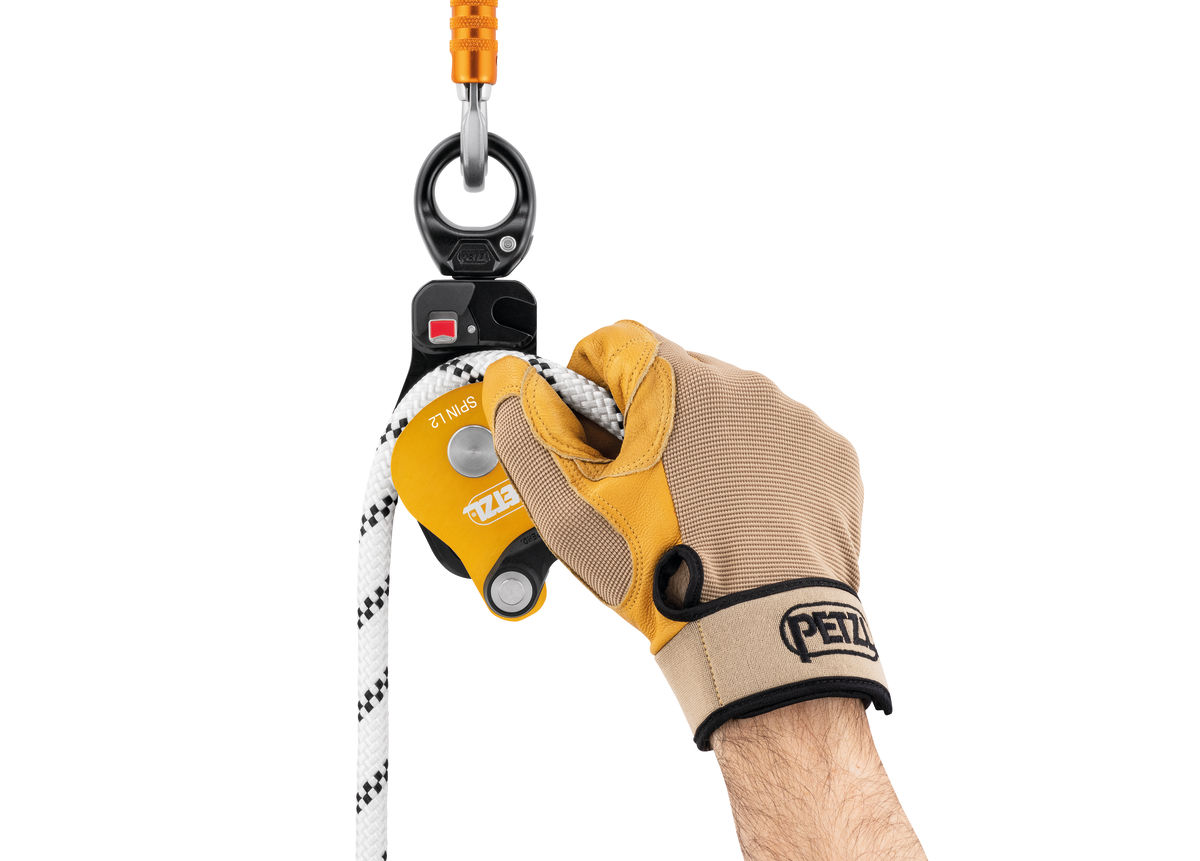

– the rope can be installed with the device connected to the anchor.

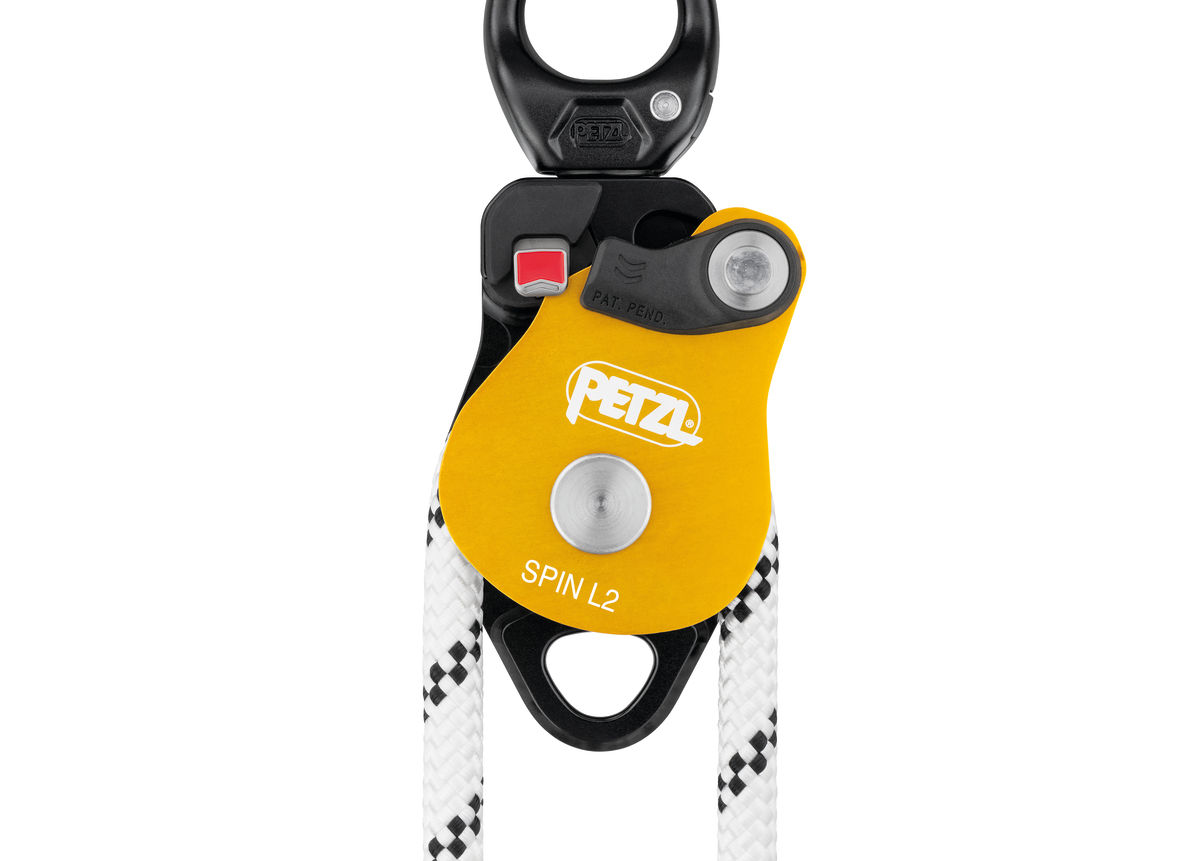

– red mark provides a visual warning when the moving side plate is unlocked
– special side plate design protects the rope path - Optimal efficiency:

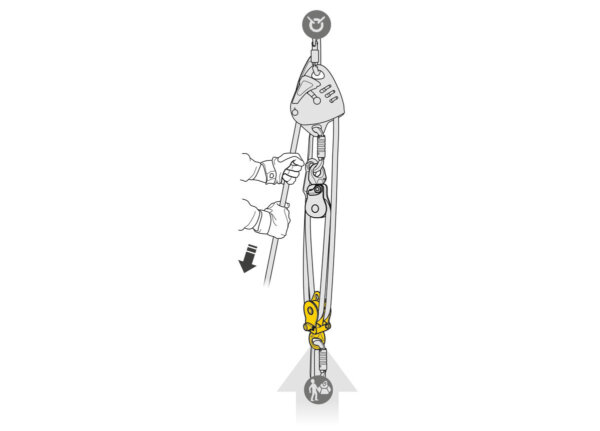

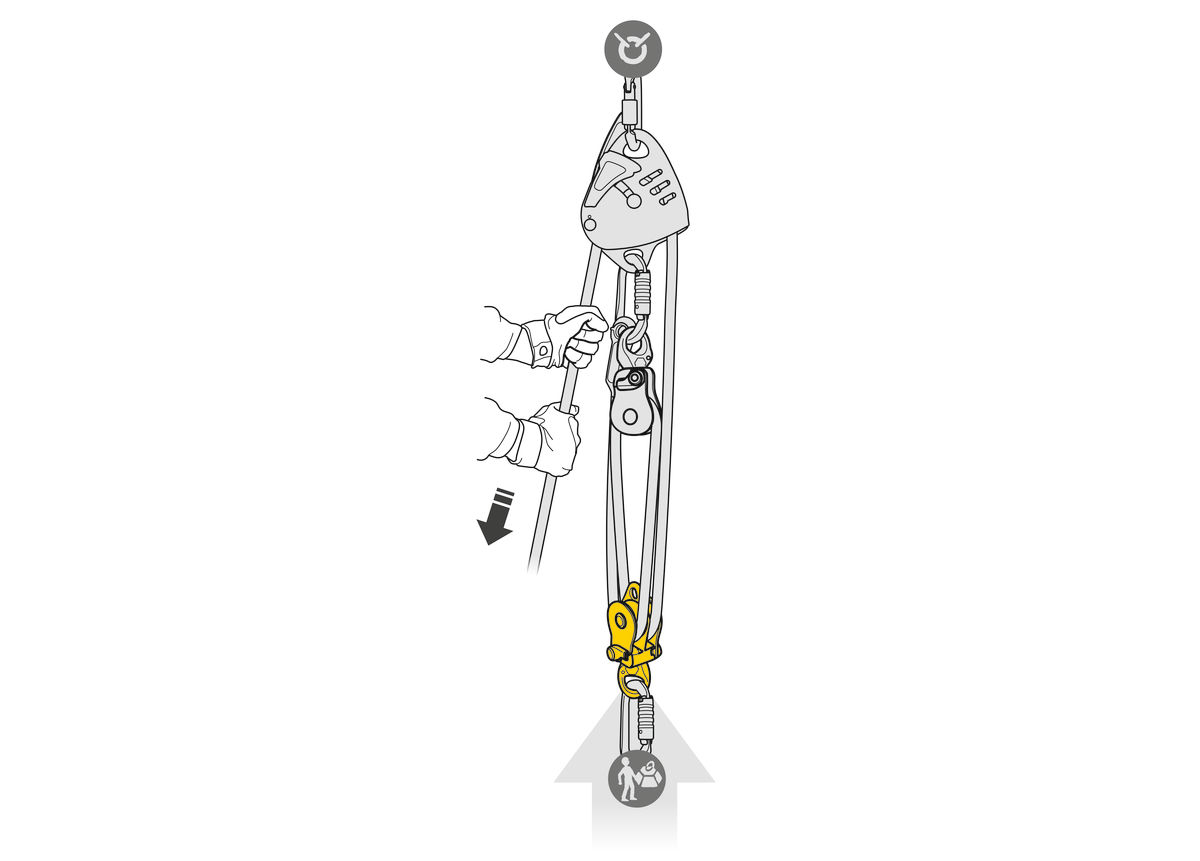

– large diameter sheaves mounted on sealed ball bearings for excellent efficiency - Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems
- Easy handling:
– swivel allows pulley to be oriented under load
– swivel accepts up to three carabiners
– swivel and auxiliary attachment point allows the use of ropes and slings to facilitate maneuvers.
Specifications
- Weight: 480 g
- Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, UKCA
- Material(s): aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 38 mm
- Maximum working load: 8 kN (3 kN per strand, more information in the Instructions for Use)
- Breaking strength: 36 kN
- Efficiency: 95 %
References
| References | P001CA00 | P001CA01 |
|---|---|---|

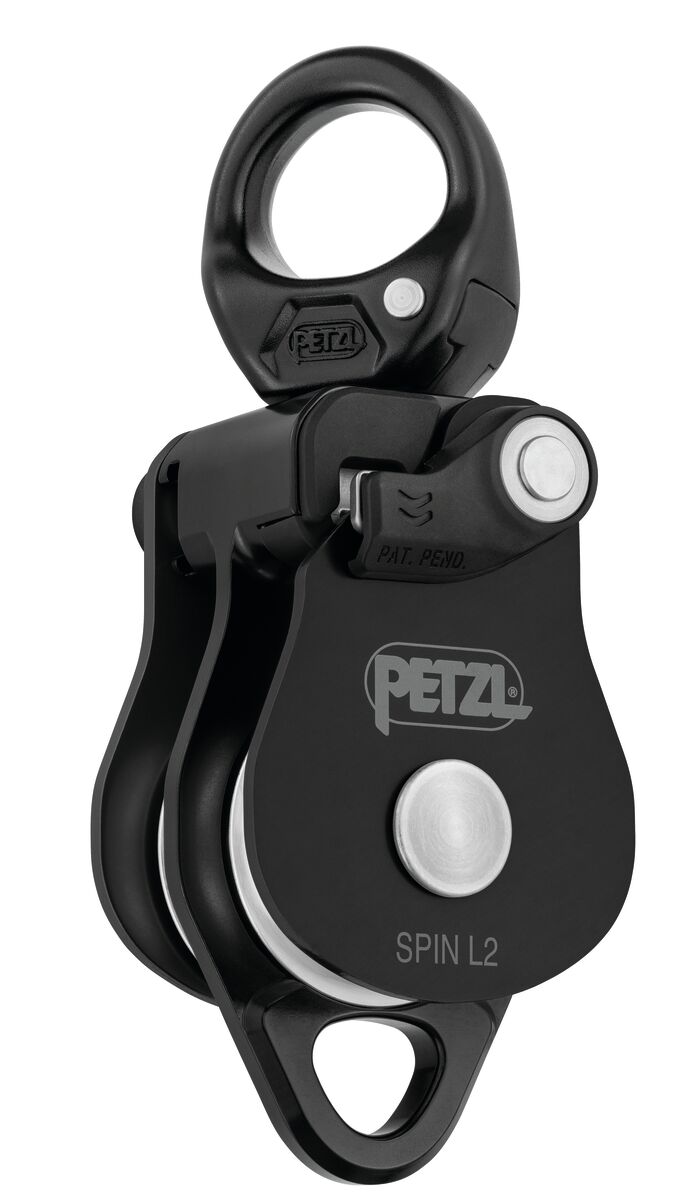

| Color(s) | Yellow | Black |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
