Description
- Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:

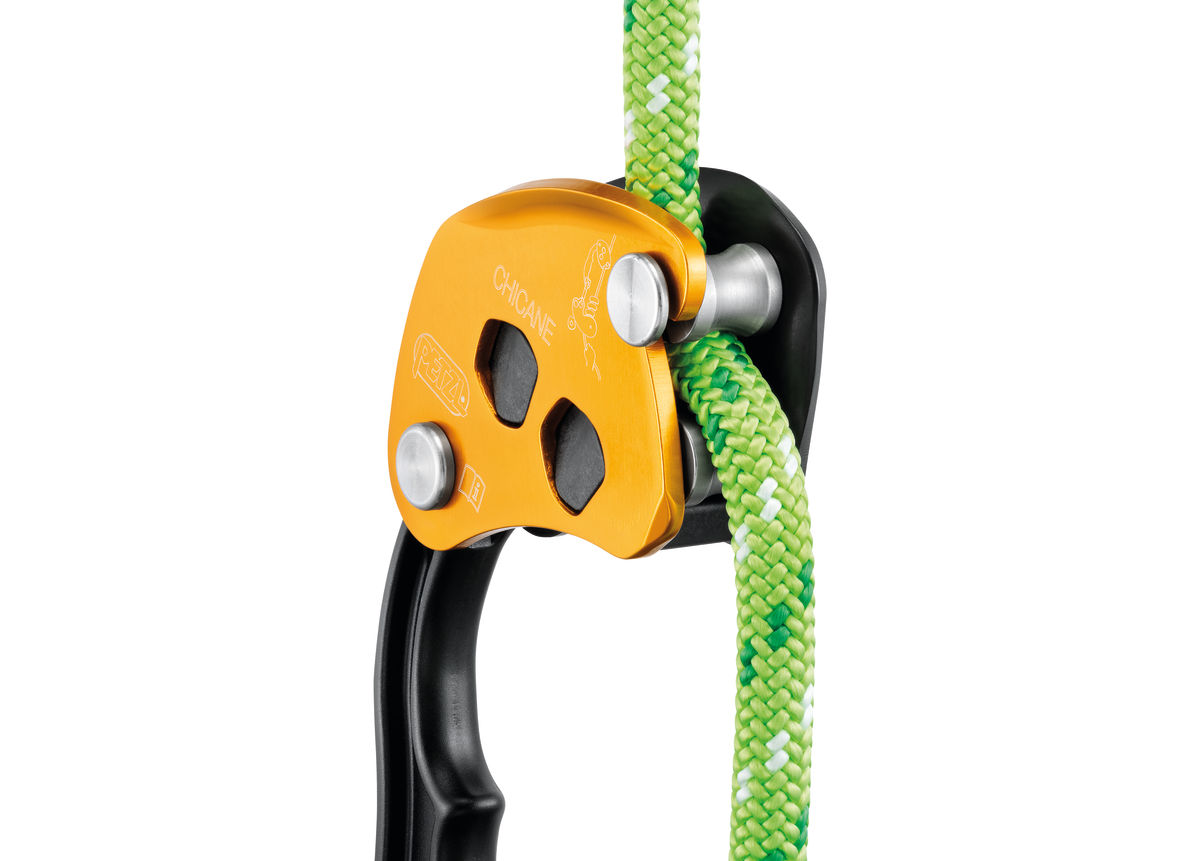

– continuous additional braking action, thanks to the added friction of the two friction pins

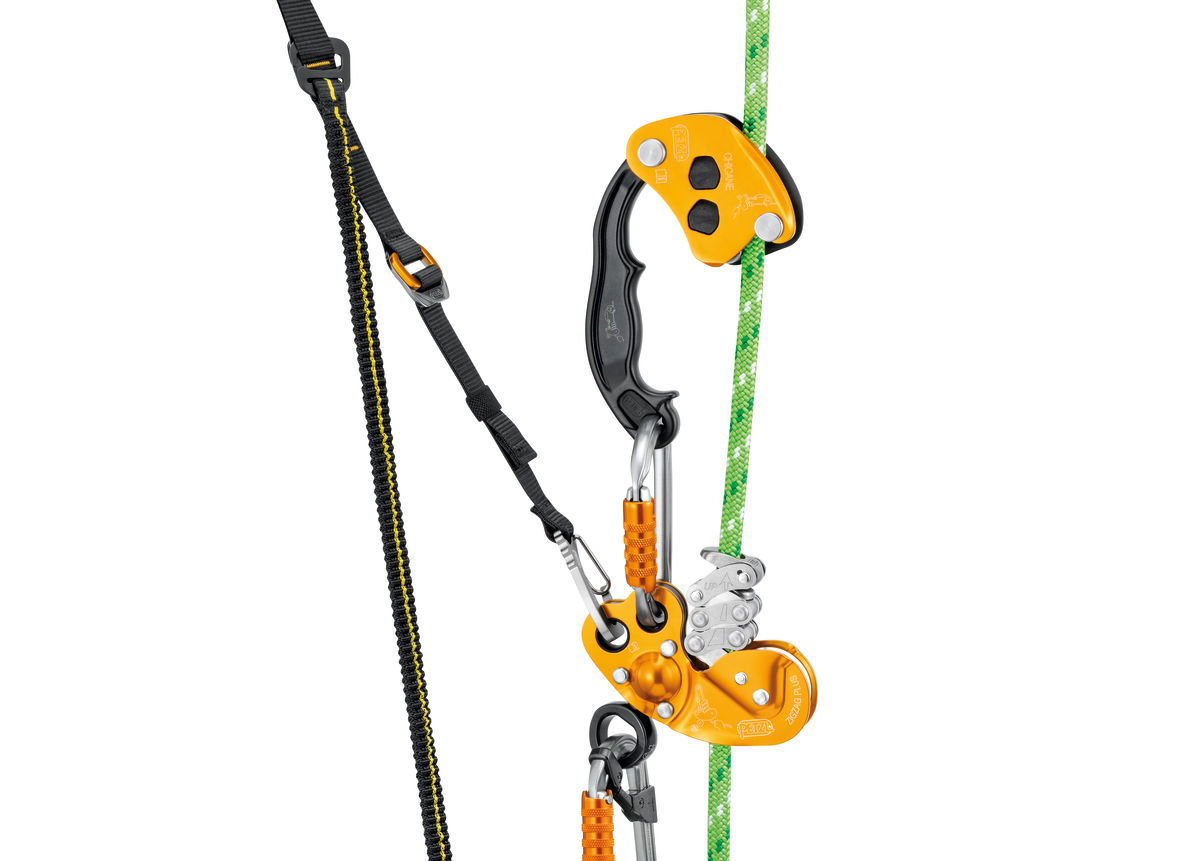

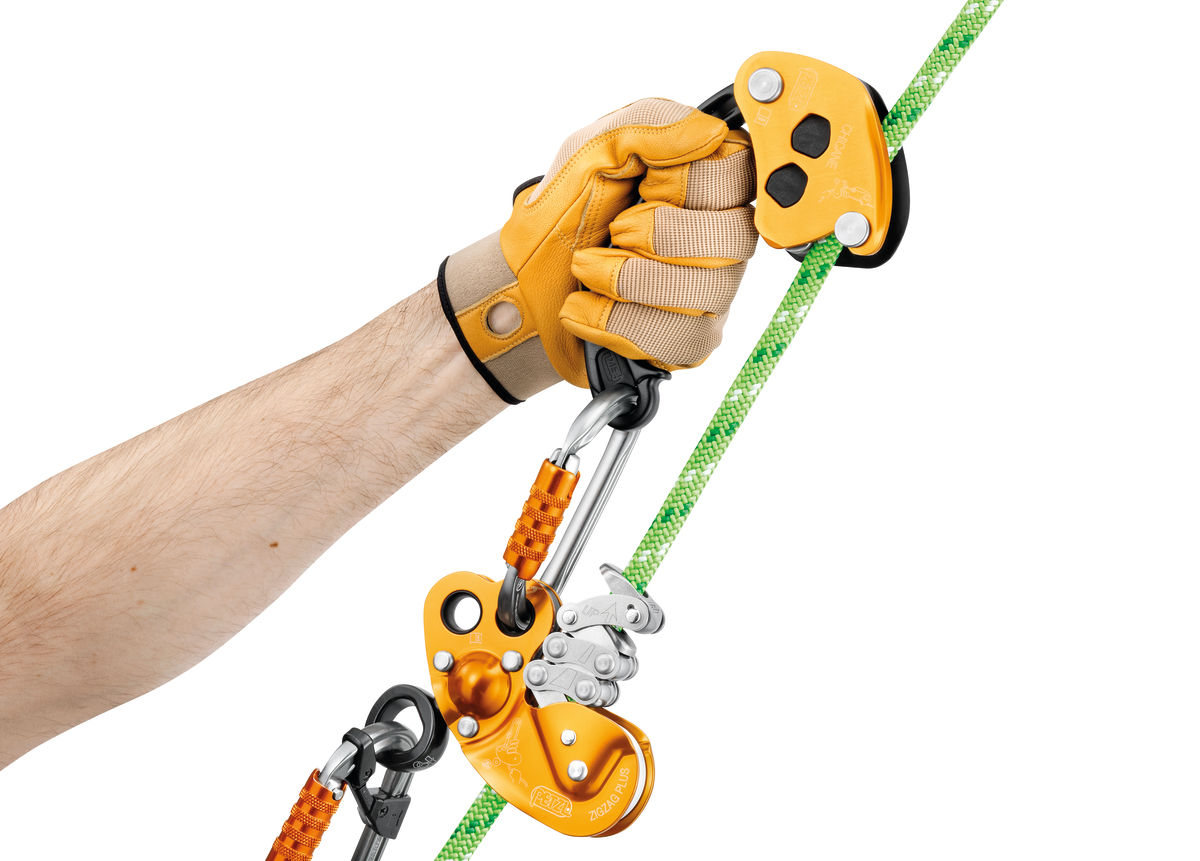

– used with an Am’D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents

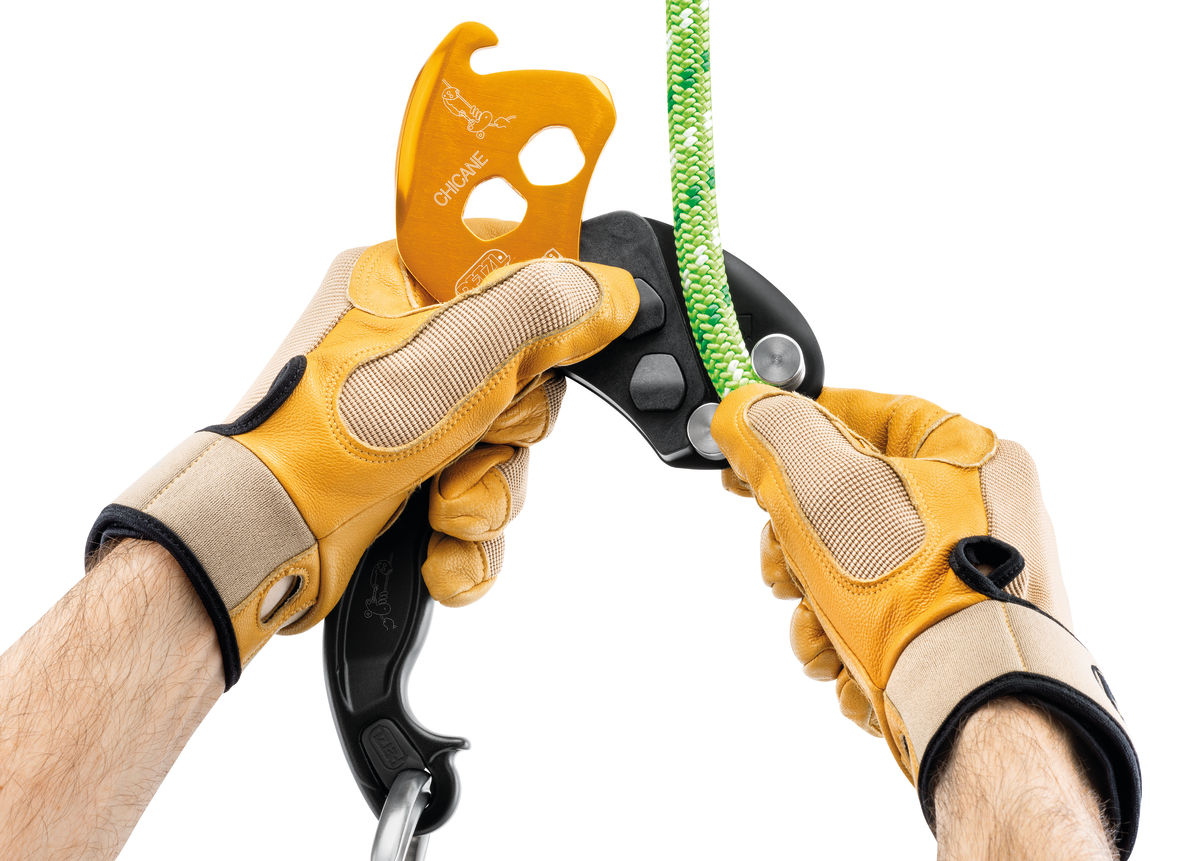

– ergonomic handle facilitates movement while limb walking - Easy installation:
– openable side plate for quick and easy installation on the rope
– triple action unlocking limits rick of accidentally opening the side plate
– connects on the upper hole of the mechanical Prusik - Optimized durability, thanks to the two friction pins, available as spare parts
- CHICANE allows the user to work in compliance with the ANSI Z133 standard
Specifications
- Material(s): aluminum, steel, nylon
- Weight: 255 g
- Min. rope diameter: 11,5 mm
- Max. rope diameter: 13 mm
- Rope compatibility: EN 1891 type A low stretch kernmantel ropes
- Working load limit: 140 kg
- Certification(s): CE, UKCA
References
| References | D022CA00 |
|---|---|
| Guarantee | 3 years |
| Inner Pack Count | 1 |
