Description
- Easier handling:
– sheave mounted on sealed ball bearings for excellent efficiency

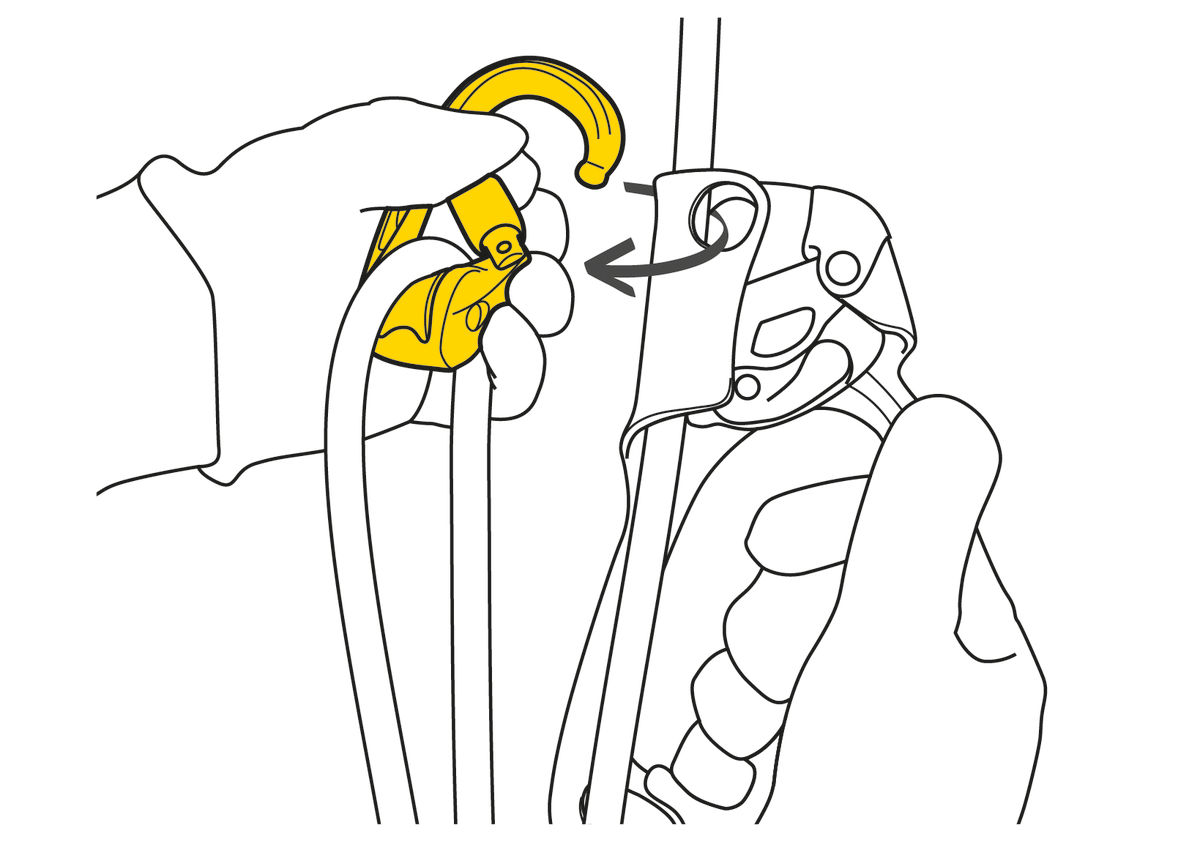

– gate opening on the non-pulley side, to facilitate installation on devices

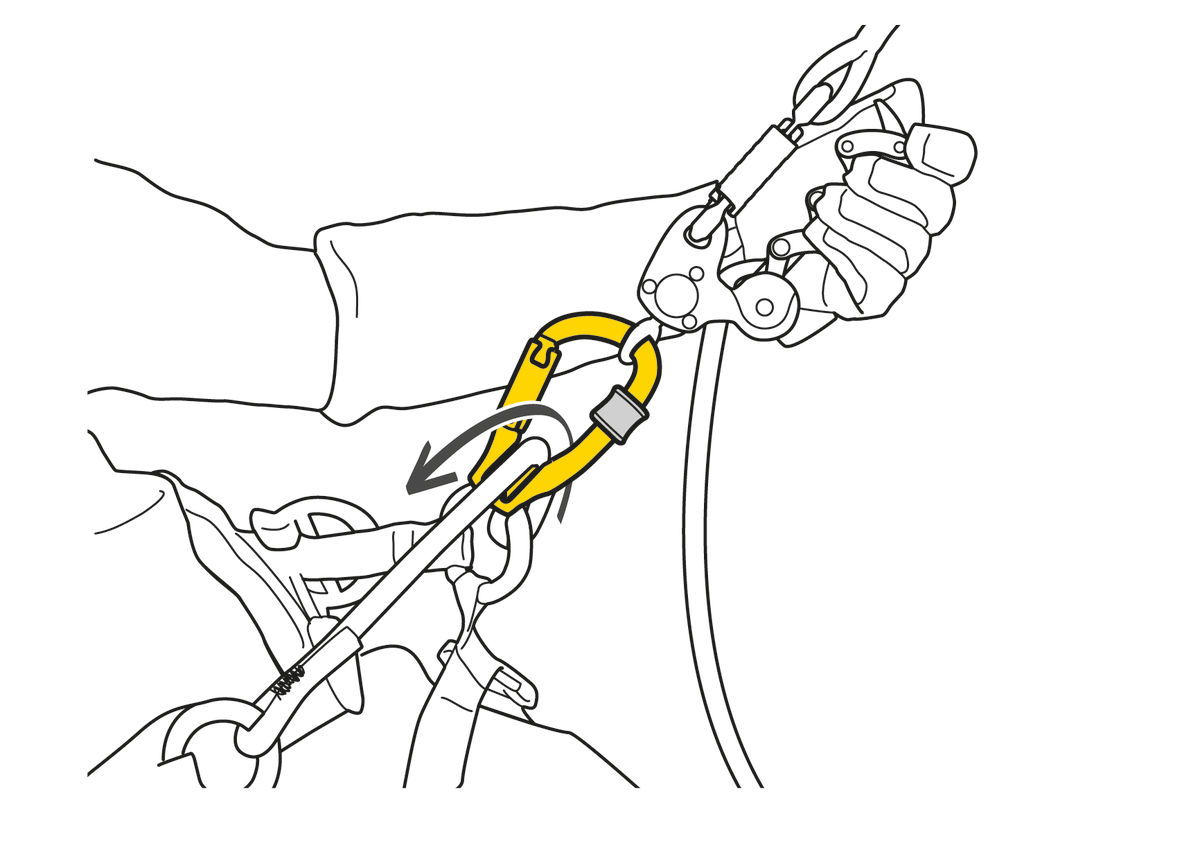

– Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place - H cross-section of carabiner:
– ensures an improved strength-to-weight ratio
– protects markings from abrasion - Two locking systems available:

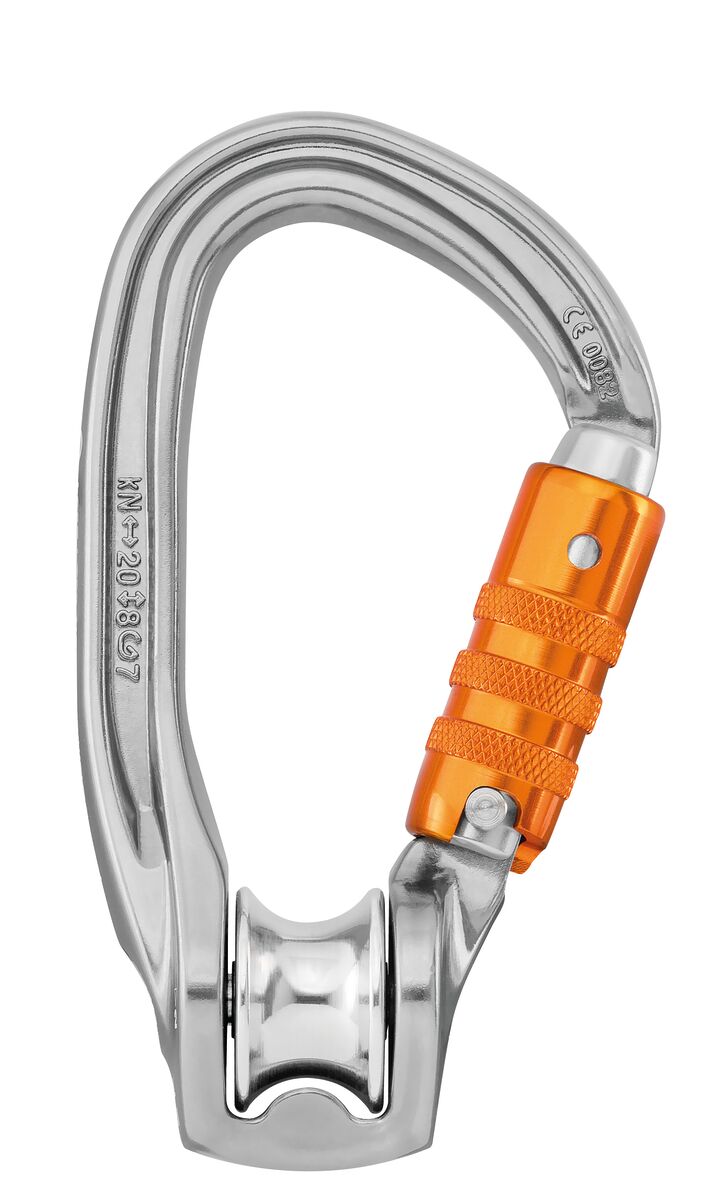

– TRIACT-LOCK: automatic locking with triple-action gate opening

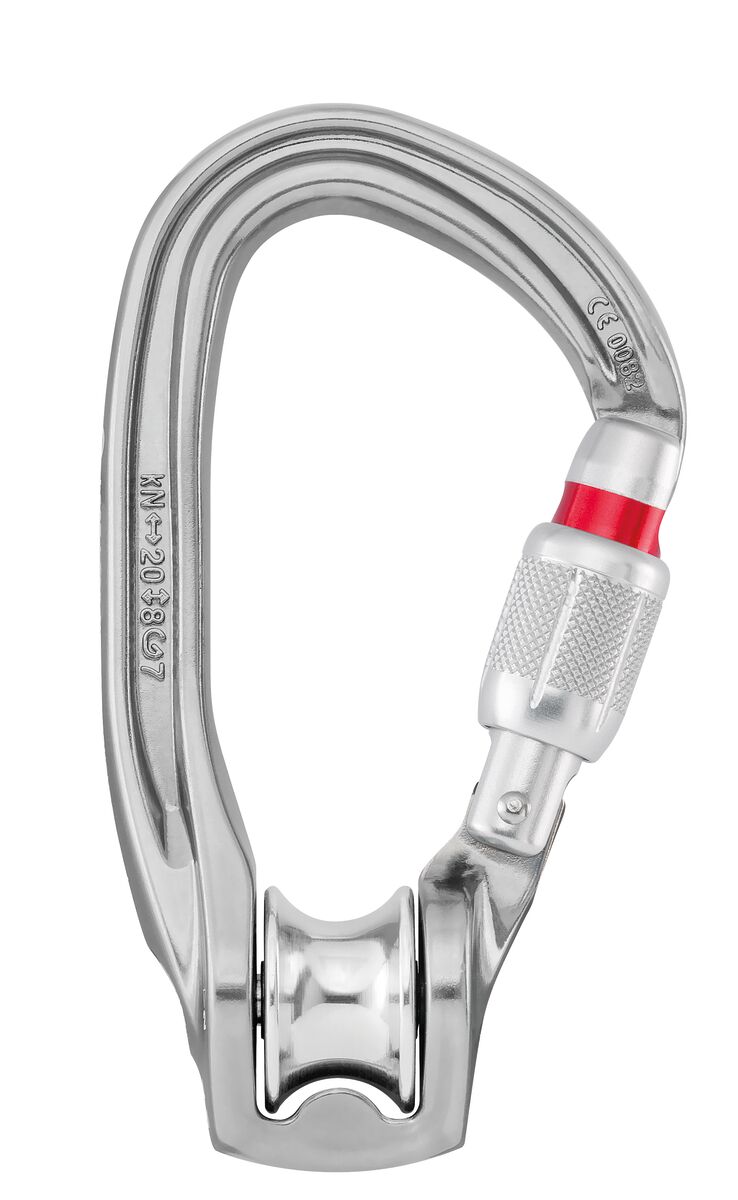

– SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
References
| References | P75 TL | P75 SL |
|---|---|---|
| Locking system | TRIACT-LOCK | SCREW-LOCK |
| Weight | 110 g | 105 g |
| Certification(s) | CE EN 362, EN 12278, UKCA, EAC | CE EN 362, EN 12278, UKCA, EAC |
| Gate opening | 20 mm | 21 mm |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
