Am’D PIN-LOCK

Additional information

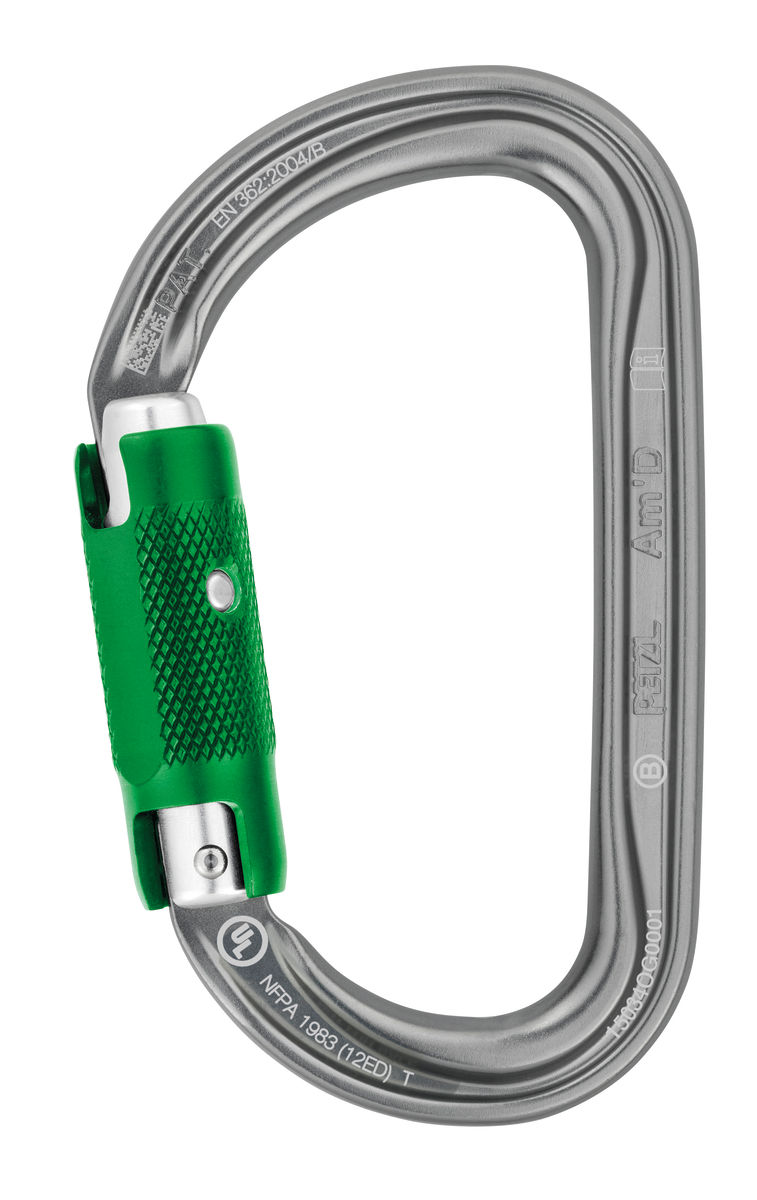

Am’D PIN-LOCK

Asymmetrical aluminum carabiner, unlocks with a tool

The Am’D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool. Am’D PIN-LOCK can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Add to Quote

Description

  • Carabiner designed for use with groups:
    – to fasten a harness (in combination with the CAPTIV positioning bar)
    – to connect a trolley to a continuous lifeline
  • Secures the connection of the user:
    – may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
    – PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
  • Easy to use by the operator:
    – Keylock system to avoid any involuntary snagging of the carabiner

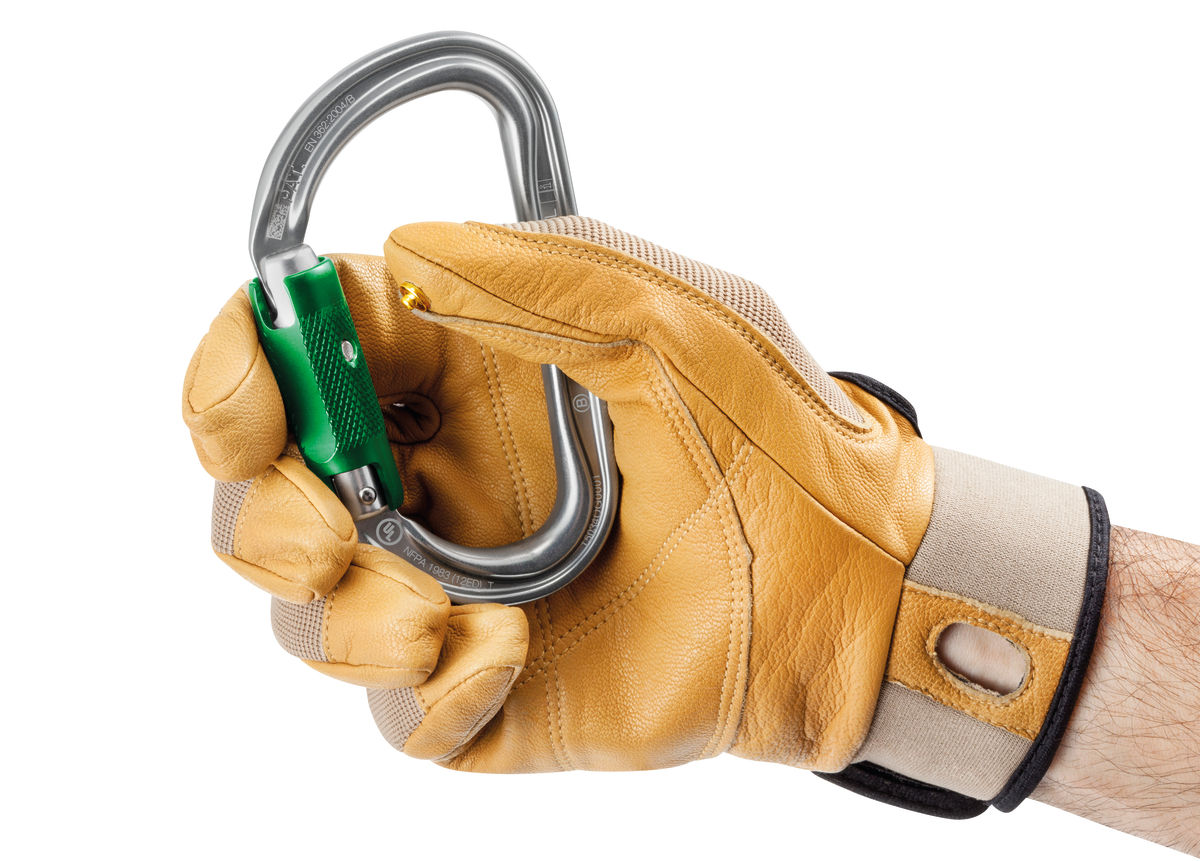

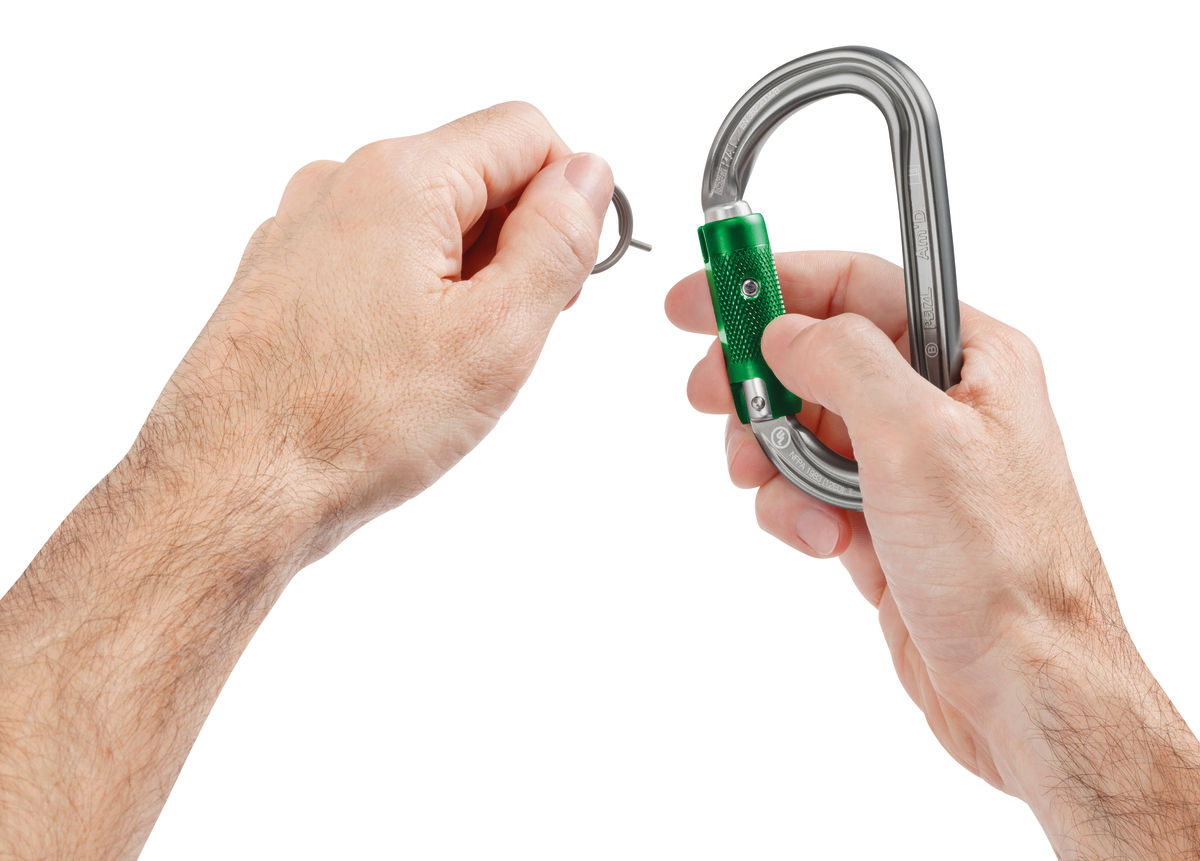

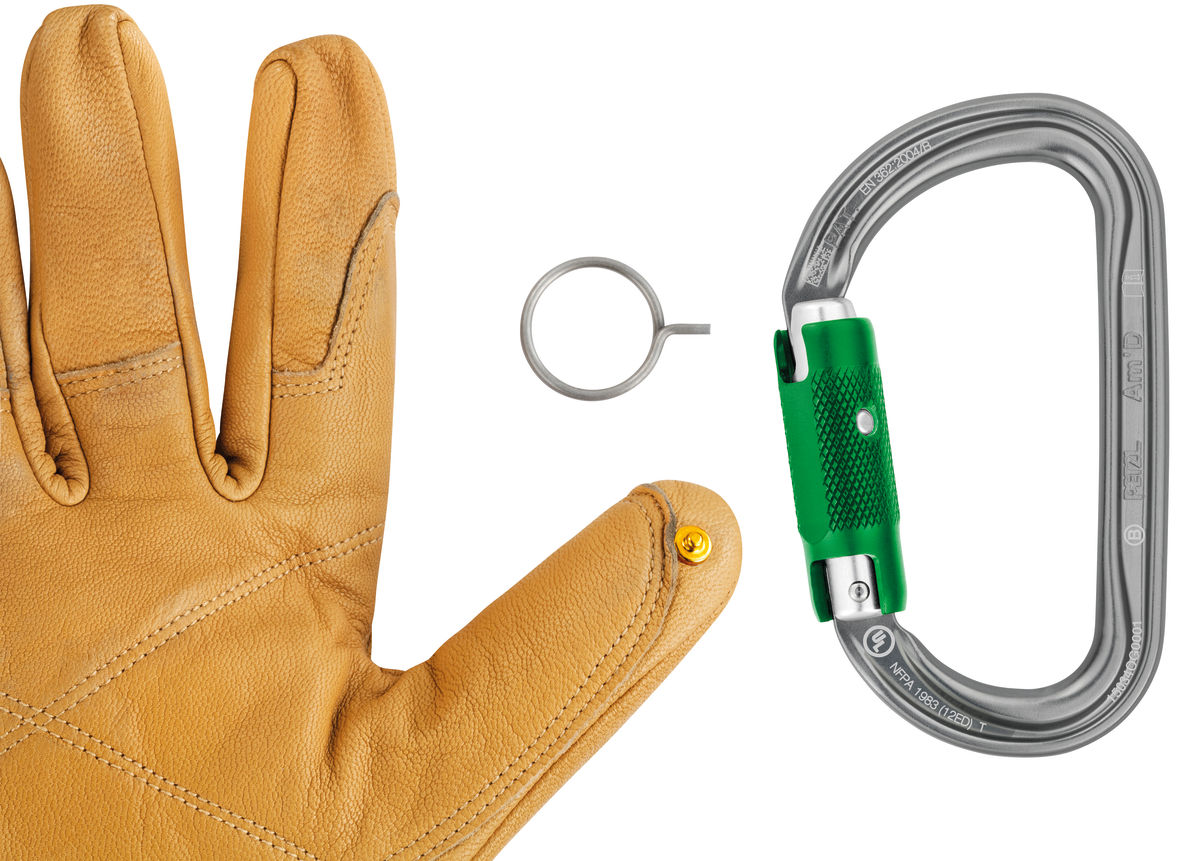

    – two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
    – H-profile protects markings from abrasion and ensures improved strength-to-weight ratio
  • Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only

Specifications

  • Material(s): aluminum
  • Certification(s): CE EN 362, CE EN 12275, UKCA, EAC

References

ReferencesM34A PLM34AB PL
Locking systemPIN-LOCKPIN-LOCK
Inner Pack CountSold individuallySold in a pack of 10
Weight80 g800 g
Color(s)graygray
Major axis strength27 kN27 kN
Minor axis strength8 kN8 kN
Open gate strength7 kN7 kN
Gate opening25 mm25 mm
Guarantee3 years3 years

Video

Technical Information
